MODEL “Ball Transfer Table”

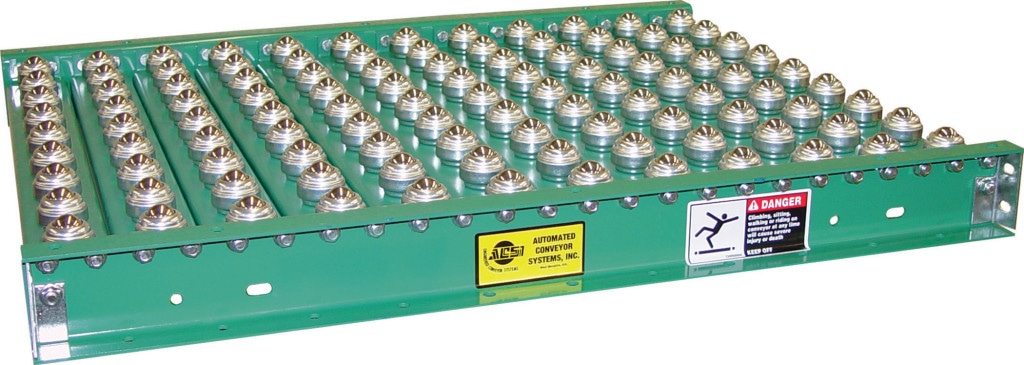

Ball Transfer Table

Online Resources:






STANDARD SPECIFICATIONS

Frames – 3-1⁄2″ x 1-1⁄2″ x 10 gauge powder painted formed steel channel with powder painted, formed channel ball mounting plates bolted in frame; or 2-1⁄2″ x 1″ x 12 gauge powder painted formed steel channel frame with same ball mounting plates (Model BT).  Also available in “drop-in” type (Model BTD) that replaces rollers in gravity conveyors. Bolts into existing roller axle holes for easy field mounting.
Balls
– 1″ diameter stud mounted.
Widths
– From 13″ between frames (B/F) and wider in two inch increments up to 27″;
also 31″, 33″, 37″ and 39″ between frames.
Lengths
– Available 1 foot to 10 feet.
Couplings
– Butt type for bolting sections together.  Matches gravity conveyor.
Capacity
– 50 pounds per ball transfer, 1,300 pounds maximum load with supports on 10 feet centers; 3,200 pounds maximum load with supports on 5 feet centers.
(For Weight Cart and Engineering Line Drawings please see catalog pages, above).
