MODEL “Gravity Skatewheel Conveyors”

Gravity Skatewheel Conveyors

skatewheel_curve_90

Online Resources:




STANDARD SPECIFICATIONS

Frame – Frames are 2-1⁄2″ X 1″ x 12 gauge powder painted formed steel or 2-1⁄2″ x 1″ x 1⁄8″ aluminum formed channels. The 12″, 15″ and 18″ wide sections have one 1⁄8″ x 1″ axle supports and the 24″ wide has two 1⁄8″ x 1″ axle supports.
Wheels
– Zinc plated steel or aluminum wheels are 1-15⁄16″ diameter x 5⁄8″ face with a steel hardened raceway and a 13⁄16″ wide cone. Each wheel contains (7) 1⁄4″ hardened and ground steel balls. The lightly oiled baffled construction is designed to keep dirt out.
Cross Braces
– 5 ft. long sections have (2) bolted cross members and 10 ft. long sections have (3) bolted cross members.
Axles
– All axles are 1⁄4″ diameter cold drawn steel, set on 3″ centers and secured with a 1⁄4″ – 20 stop nut.
Wheel Capacity
– Steel, 50 lbs; aluminum, 45 lbs.
Wheels Per Foot
– Standard patterns include 8, 10, 12, 16, 18, 20, 24 and 28 wheels per foot.
Couplings
– Each 5′ and 10′ section is equipped with a hook and rod connector. The slotted hook permits minor lateral movement. No tools are necessary for assembly, just hook together.
Widths
– Standard widths are 12″, 15″, 18″ and 24″.
Lengths
– Standard lengths are 5′ and 10′.

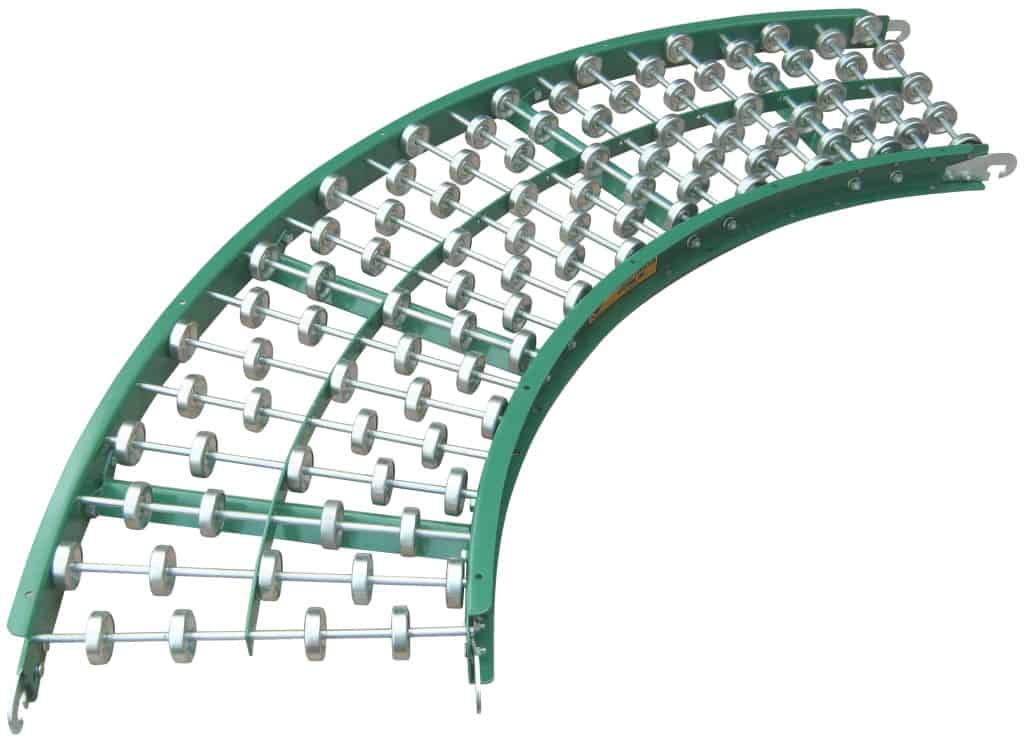

Curves
– Standard curves are 45° and 90°. The outside radius is 4 feet. Capacity same as straight sections.
Conveyor Capacity
– See Capacity Chart.
(For Optional Equipment, Weight Specifications, and Engineering Line Drawings, please see catalog pages, above).
