Automated Conveyor Systems, Inc.

MODELS “138SR / 138SRH / 138AR”

Gravity Roller Conveyors, Straight and Curved Sections

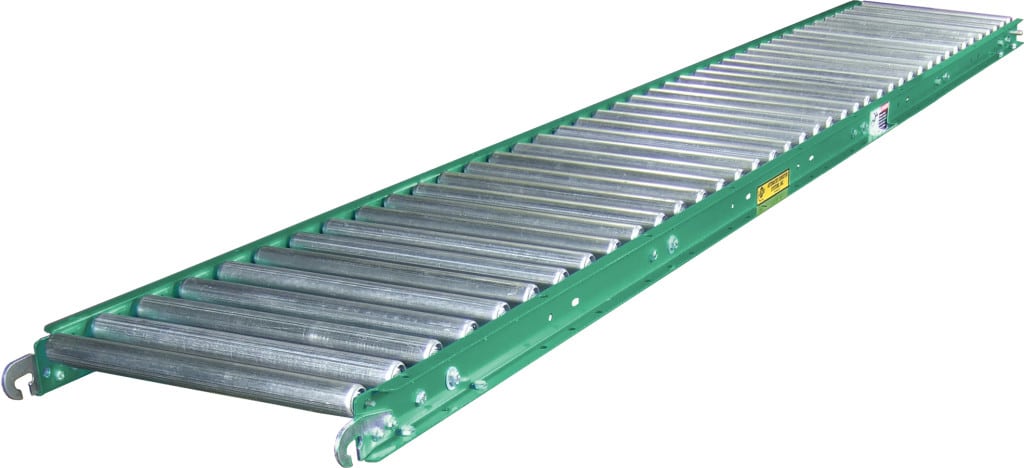

138sr

Applications / Features:

  • Cartons
  • Tote Pans
  • Assembly Lines
  • Shipping Departments



Online Resources:




STANDARD SPECIFICATIONS

Steel, Models 138SR and 138SRH

Frames – 2-1⁄2″ deep x 1″ flange x 12 gauge powder painted formed steel.
Rugged cross members bolted between channels.
Rollers
– 1-3⁄8″ diameter x 18 gauge galvanized steel tubing with swaged ends for a firm bearing seat.
Rollers have spring loaded axle for easy removal or insertion.
Axles
– 1⁄4″ diameter cold rolled steel for Model 138SR; 5⁄16″ hex for Model 138SRH.
Couplings
– Hook and rod.
Widths
– 12″, 15″, 18″ and 24″ overall width.
Length
– 5′ and 10′ long straight sections.
Capacity
– See Frame Capacity Chart.



Aluminum, Model 138AR

Frames – 2-1⁄2″ deep x 1″ flange x 1⁄8″ heat treated aluminum.
Rugged aluminum cross members bolted between channels.
Rollers
– 1-3⁄8″ diameter heat treated aluminum tubing with swaged ends for a firm bearing seat.
Rollers have spring loaded axle for easy removal or insertion.
Axles
– 1⁄4″ diameter cold rolled steel.
Couplings
– Hook and rod.
Widths
– 12″, 15″, 18″ and 24″ overall width.
Length
– 5′ and 10′ long straight sections.
Capacity
– See Frame Capacity Chart.

(For Weight Specifications and Engineering Line Drawings please see catalog pages, above).
