Automated Conveyor Systems, Inc.

MODELS “20SR / 20SRC”

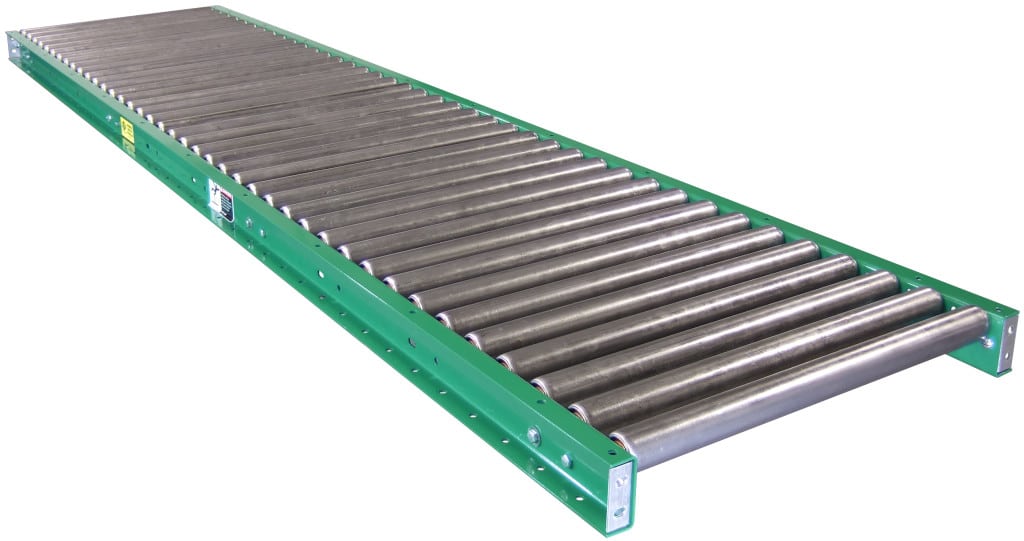

Gravity Roller Conveyor

20sr



Applications / Features:

  • Cartons
  • Tote pans
  • Assembly lines
  • Shipping departments
  • Right and left hand units
  • Bolt in cross members



Online Resources:




STANDARD SPECIFICATIONS

Frames – 3-1⁄2″ deep x 1-1⁄2″ flange x 10 gauge powder painted formed steel with bolt-in cross members; rollers set 1⁄4″ high.
Rollers
– 2″ diameter x 12 gauge unplated steel tubing with swaged ends to provide a firm bearing seat and rounded ends.  Tapered rollers in curve are 2-1⁄2″ to 1-11⁄16″ taper, unplated.
Bearings
– Labyrinth sealed, lightly oiled.
Axles
– 7⁄16″ hex shaft, spring-loaded.
Couplings
– Butt type, for bolting sections together.
Widths
– From 13″ between frames (B/F) and wider in two inch increments up to 27″; also 31″, 33″, 37″ and 39″ between rails.
Lengths
– 10′ and 5′ long straight sections.
Capacity
– 300 pounds per roller with 1,350 pounds maximum distributed live load over 10 foot length; 3,100 pounds maximum distributed live load over 5 foot length.
Curve Degree
– 45° and 90° with 2′ 8-1⁄2″inside radius for widths up to 27″ between frames. 4’0″ inside radius for 31″, 33″, 37″, and 39″ between frames.

(For Weight Specifications and Engineering Line Drawings please see catalog pages, above).
