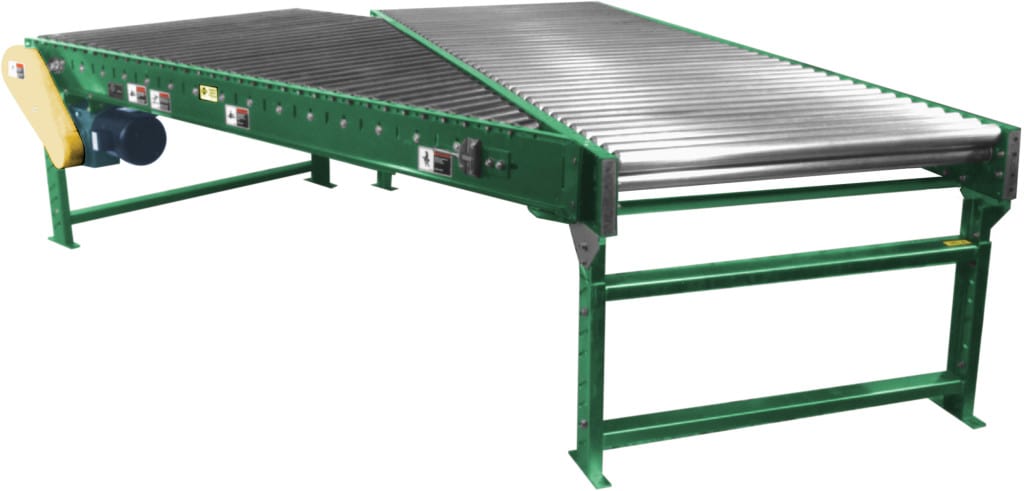

Light Duty V-Belt Roller Straight Spur
Applications / Features:
- Used for Merging or Diverging
- Gives Positive Drive
- Can be Slave Driven by “138CAP”
Driving Belt – “B” section V-belt.
Bed – Roller bed width between frames, 10″ 13″, 16″, and 22″. 5-1/2″ x 1-1/2″ x 12 gauge powder painted formed steel channel frame.
Tread Rollers – 1-3/8″ diameter x 18 gauge galvanized steel tread rollers, 1-1/2″ centers, 5/16″ hex shaft for 13″ to 19″ OAW. 2-1/2″ to 1-11/16″ tapered roller for 25″ OAW conveyor, 7/16″ hex shaft.
Pressure Sheaves – 3″ diameter x 3/8″ bore, adjustable to give required driving force.
Floor Supports – One support adjustable 30″ to 44″ from floor to top of rollers. Center leg on outer rail of “138CLRS”.
Tangent – 12″ long, on one end of curved spur.
Take-Up – Screw take-up provided to insure proper V-belt tension. Mounted in conveyor frame.
End Drive – Mounted below bed section.
Bearings – Sealed pre-lubricated with cast iron housings.
Speed Reducer – C-Face mounted heavy duty worm gear reducer.
Motor – 1/2 HP 230/460-3-60 TE motor.
Conveying Speed – 60 FPM constant.
Capacity – 300 lbs. total distributed live load.
(For Optional Equipment, Weight Specifications, and Engineering Line Drawings, please see catalog pages, above).
(Optional colors available at extra cost)
Guard Rails – Adjustable channel, continuous channel,steel guard rails available.
Floor Supports – Lower or higher supports are available. Minimum elevation 151 ⁄2″.
Ceiling Hangers – 1 ⁄2″ diameter threaded rods 8 feet long with locking nuts and mounting hardware. Other lengths are available.
Side Mounted Drive – End drive mounted to side of conveyor bed section. Minimum elevation 8″. Specify side.
Motor – Single phase, energy efficient, explosion proof, etc. Other HP available. Conveying Speed – Variable and other constant speeds available.
Electrical Controls – Magnetic starters and push button stations; manual motor starters with overload protection, others
