Automated Conveyor Systems, Inc.

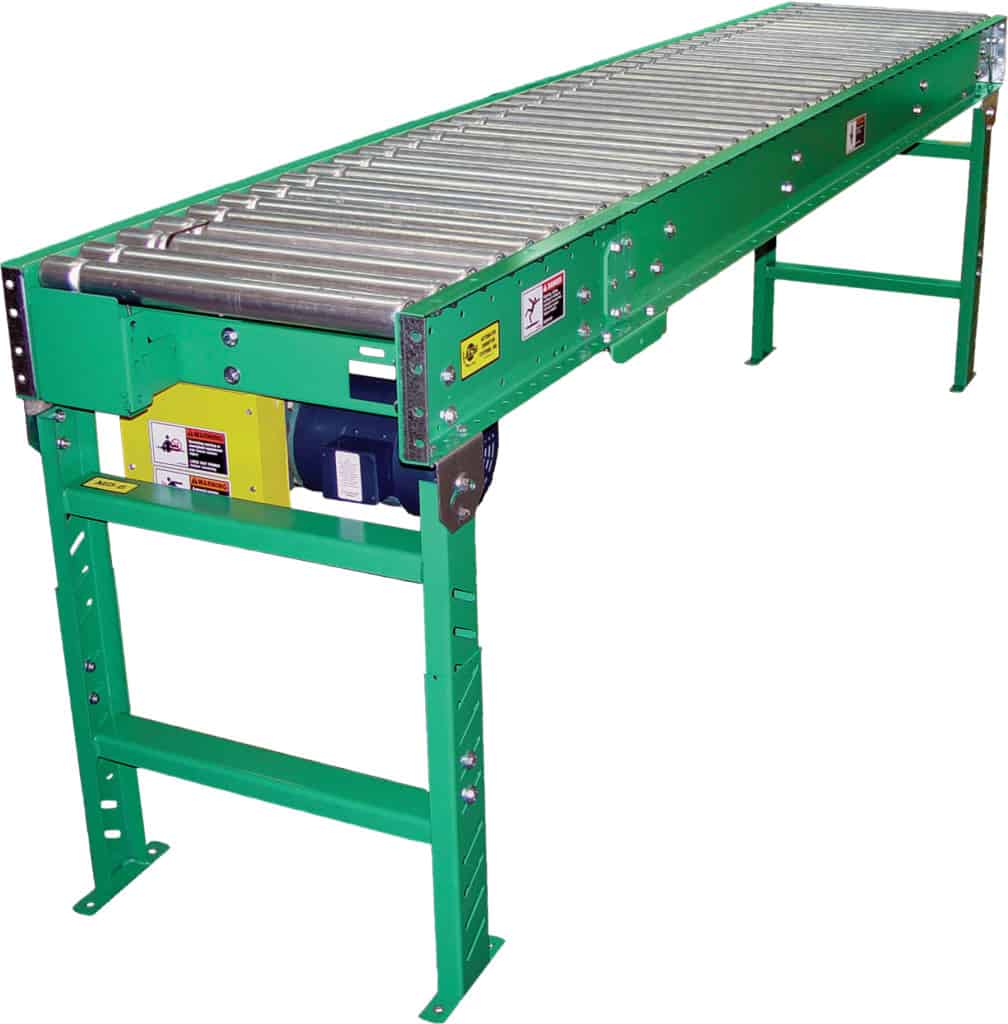

MODEL “190LS”

Line Shaft Live Roller Accumulator

Applications / Features:

  • Low Pressure Accumulation
  • Clean Room Installation
  • Economical Transportation Conveyor
  • Assembly Conveyor



Online Resources:



STANDARD SPECIFICATIONS

Driving Belts – 3⁄16″ diameter round urethane “O” rings from drive shaft to tread rollers.

Bed – 7″ x 1-1⁄2″ x 12 gauge powder painted formed steel channel frame with heavy duty cross braces and splice plates.

Rollers – 1.9″ diameter x 16 gauge galvanized steel tread rollers with 7⁄16″ hex shaft and sealed, greased for life bearings, spaced on 3″ centers.

Floor Supports – Adjustable 31-1⁄2″ to 45-1⁄2″ from floor to top of tread roller. One support supplied at each end of conveyor and at each bed joint.

Drive – 2 foot module with motor and reducer. Drive module will be bolted to intermediate section.

Drive Shaft – 1″ diameter steel shaft, driven by motor and reducer, runs full length of conveyor. Chain coupling supplied at bed joints to couple sections together.
Drive Spools– Delrin spools located on drive shaft supplies driving power to tread rollers.
Drive Shaft Bearings – Sealed, prelubricated, self aligning, precision ball bearings on drive shaft.
Speed Reducer– C-Face mounted, heavy duty worm gear reducer.
Motor– 1⁄2 HP 230/460/3-60 TE motor.
Drive Guard– Perforated metal guard full length of conveyor covers drive shaft and other moving drive components.
Conveying Speed – 60 FPM constant.
Capacity– 15 lbs. per tread roller maximum. Not to exceed Load Capacity Chart.





ACSI Paint Colors
Optional ACSI Paint Colors
(Optional colors available at extra cost)


OPTIONAL EQUIPMENT

Conveying Speed – Constant and variable speeds from 30 to 120 FPM available.
Timing Belt Drive– For speeds over 90 FPM a timing belt drive in lieu of #50 chain drive is recommended.
Roller Centers-Tread rollers can be placed on 2-1⁄4″, 4″, 6″, or 8″ centers. NOTE: Capacities change as roller centers change. See engineering section of price list for capacity changes.
Floor Supports– Lower or higher supports available. Minimum elevation with standard drive mounting is 18″ from floor to top of rollers.
Powered Right Angle Belt Transfer– Air operated pop-up round belt transfer mounted in 32″ long modular section, 75 lbs. maximum unit load.
Package Stops – Manual or air operated blade or roller stops available.
Guard Rails-Adjustable channel or solid fixed guard rails available.
Motor – Single phase, energy efficient, explosion proof, etc. Other HP available.
Ceiling Hangers – 1⁄2″ diameter threaded rods 8 feet long with locking nuts and mounting hardware.
Jump Chain-One-to-one chain drive moves drive shaft to opposite side for driving various optional accessories.
