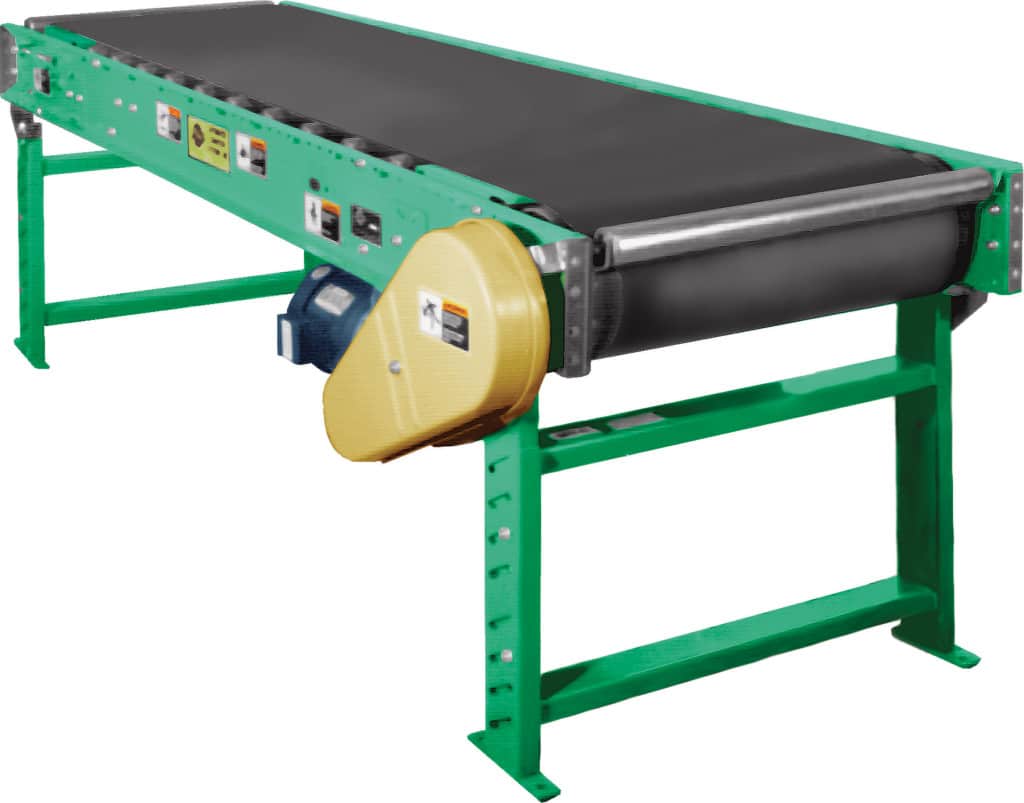

Medium Duty Roller Bed Belt Conveyor
Applications / Features:
- Transporting Horizontally or on Incline
Belt – 12″, 18″, 24″, 30″, 36″, 42″ and 48″ Black PVC 120 belt. (For Optional Equipment, Weight Specifications, and Engineering Line Drawings, please see catalog pages, above).
Bed – Roller bed with 1.9″ diameter galvanized steel rollers. Rollers spaced on 6″ centers. Rollers mounted in 7″ deep x 12 gauge powder painted formed steel channel frames. Frames bolted together with butt couplings and floor supports.
X-Bracing – Frame squaring device supplied on conveyors 40 feet and longer for every other bed section. X-bracing insures good product and belt tracking.
Drive Pulley – 8″ diameter crowned and fully lagged, 1-7/16″ shaft.
Tail Pulley – 4″ diameter crowned supplied through 30″ wide belts. 6″ diameter crowned supplied for 36″ and wider belts. 4″ diameter pulley has 1-3/16″ diameter shaft; 6″ diameter pulley has 1-7/16″ diameter shaft turned down on ends to 1-3/16″ diameter.
Pop-Out Roller – 1.9″ diameter roller, Iocated at drive pulley and tail pulley.
Snub Roller – 2-1/2″ diameter adjustable roller, Iocated directly behind drive pulley, 2″ diameter located behind tail pulley.
Return Rollers – 1.9″ diameter adjustable on 10’0″ centers.
Take-Up – Located at tail end, provides 12″ of belt take-up.
Bearings – Sealed-prelubricated with cast iron housings.
Floor Supports – Adjustable 31-1/2″ to 45-1/2″ from floor to top of belt.One support supplied at each end of conveyor and at each bed joint.
Speed Reducer – C-Face mounted heavy duty worm gear reducer.
Motor – 1/2 HP 230/460-3-60 TE motor.
Belt Speed – 60 FPM constant.
Capacity – 200 pounds per foot maximum. Not to exceed Load Capacity Chart.
Belt – 12″, 18″, 24″, 30″, 36″, 42″ and 48″ Black PVC 120 belt.
(For Optional Equipment, Weight Specifications, and Engineering Line Drawings, please see catalog pages, above).
Belt – Nitrile (white or black) with smooth top cover, Black PVC rough top, Brown Nitrile rough top. Special belts on application.
Roller Centers – 1.9″ diameter galvanized steel rollers spaced on
3″, 4- 1⁄2″, 9″ or 12″ centers.
Guard Rails – Adjustable channel, continuous channel, or solid steel guard rails available.
Floor Supports – Lower or higher than standard. Castered supports with 4″ diameter or 6″ diameter rigid or swivel casters.
Ceiling Hangers – 1⁄2″ diameter threaded rods 8 feet long with locking nuts and mounting hardware. Other lengths are available.
Nose-Over – Adjustable single or double nose-over provides smooth transfer from incline to horizontal. See http://www.automatedconveyors.com/?page_id=589 for details.
Side Mounted Drive – End drive mounted to side of conveyor section. Specify side. Minimum elevation – 10″.
Center Drive – Mounted below conveyor bed section. Can be placed most anywhere in conveyor length.
Auxiliary Take-Up – Mounted below conveyor bed section. Can be placed most anywhere in conveyor length.
Motor – Single phase, energy efficient, explosion proof, etc. Other HP available.
Belt Speed – Constant and variable belt speeds available.
Electrical Controls – Magnetic starters and push button stations; manual motor starters with overload protection, others.
Power Feeder – Separate belt section with (2) MD-6 (28- 1⁄2″ to 42- 1⁄2″ adjustable) supports. Feeder driven by roller chain from
main conveyor. Auxiliary take-up required on inclined conveyor. Integral feeder available.
