Automated Conveyor Systems, Inc.

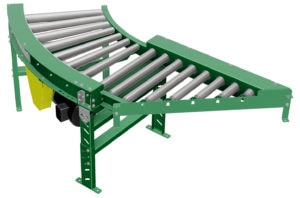

MODEL “22CRRCTS”

Medium Duty (Roll to Roll)
Chain Driven Live Roller Curve

Applications / Features:

  • Wash Down Operations
  • Oily Conditions
  • Positive Drive



Online Resources:




STANDARD SPECIFICATIONS

Drive Chain – No. 40 circular roller chain.
Bed
– Conveying surface width 14″, 16″, 18″, 24″, 28″ and 34″. 2-1⁄2″ diameter to 1-11⁄16″ diameter tapered rollers,
7⁄16″ hex shafts. Mounted in 10 gauge powder painted formed steel channel frame. Rollers are roller to roller driven.
Rollers
– Tapered rollers in curve sections; Straight rollers in straight sections.
Chain Guard
– Chain guard is mounted above frame to totally enclose drive chain.
Center Drive
– Mounted underneath conveyor in center of curve.
Floor Supports
Adjustable 28″ to 42″ from floor to top of rollers. One support at each end and center leg on outer rail.
Motor
1⁄2 HP 230/460-3-60 TE motor.
Speed Reducer
– C-Face heavy duty worm gear.
Roller Speed
– 60 FPM.
Capacity
– 850 Ibs. total distributed live load.
(For Optional Equipment, Weight Specifications, and Engineering Line Drawings, please see catalog pages, above).





ACSI Paint Colors
Optional ACSI Paint Colors
(Optional colors available at extra cost)


OPTIONAL EQUIPMENT

Guard Rails – Adjustable channel, continuous channel,steel guard rails available.

Floor Supports – Lower or higher are available. Minimum elevation, 18″ from floor to top of rollers.

Ceiling Hangers – 1⁄2″ diameter threaded rods 8 feet long with locking nuts and mounting hardware. Other lengths are available.

Side Mounted Drive – Drive mounted to side of conveyor bed. Minimum elevation 6″. Specify which side drive is to be located.

Rollers Set Low – Tread rollers mounted low in 4-1⁄2″ x 10 gauge formed steel channel frame to form 3⁄4″ high guard rails.

Motor – Single phase, energy efficient, explosion proof, etc. Other HP are available.

Roller Speed – Constant and variable roller speeds available.

Electrical Controls – Magnetic starters and push button stations; manual motor starters with overload protection, others.
