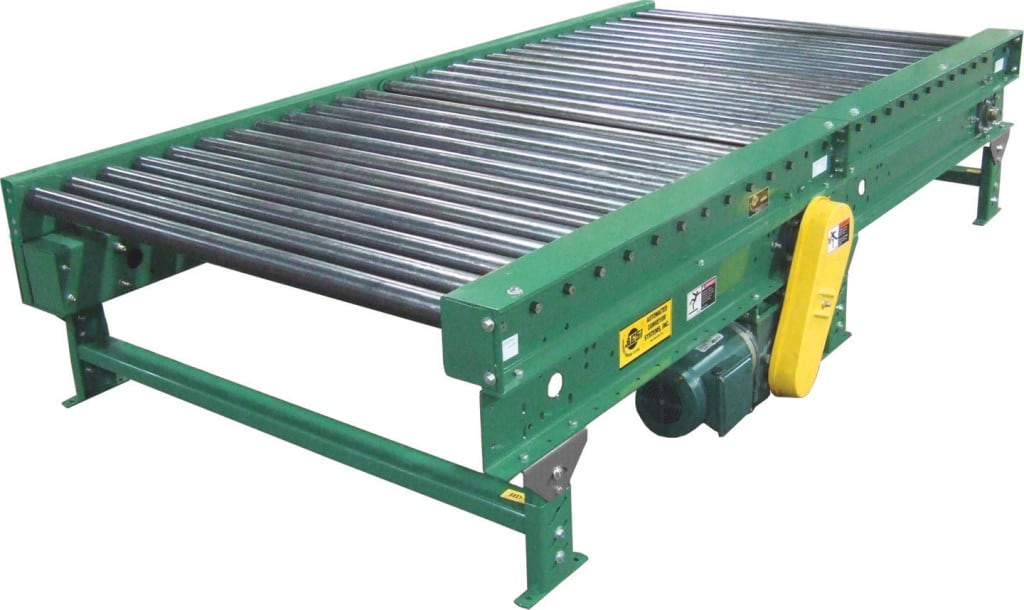

MODEL “251CDA”

Heavy Duty Mechanically Controlled Chain Driven Pallet Accumulating Conveyor

Applications / Features:

  • Zero Pressure Accumulation
  • Mechanically Operated
  • Heavy Duty Construction
  • Chain Driven Rollers
  • Zone Connections Outside Frame for Easy Installation



Online Resources:


STANDARD SPECIFICATIONS

Frame – Heavy duty 12-1/2″ deep x 7 gauge powder painted formed steel channel with heavy duty cross braces.  Frames are bolted  with spice plates and floor supports.
Rollers – 2-1/2″ diameter x 11 gauge steel rollers, grease packed and labyrinth sealed bearings, 11/16″ hex shaft.  Rollers are spaced on 4″ or 6″ centers, set 7/8″ low.
Floor Supports – Adjustable 25-5/8″ to 30-1/4″ (HD-4) from floor to top of roller, for each end of conveyor and at each bed joint along with knee braces for each support.  Supports on 5 foot centers, change with zone length.  Minimum elevation with standard drive location 24″.
Drive – Located near center of conveyor length, underneath conveyor frame.
Drive Chain – RC #40 for roller to roller connections, RC #60 chain drives each zone.  Chains are totally enclosed by metal guards.
Accumulation Zones – Standard zone lengths are 60″ long with a maximum of 30 zones per single drive
Motor – 3/4 HP 230/460-3-60 TE motor.
Electrical Controls – Input to a power supply.
Conveyor Speed – 30 FPM constant roller speed.
Speed Reducer – Heavy duty, sealed worm gear, C-Face.
Bearings – Non-reversing sealed pre-lubricated with cast iron housing
Capacity – Minimum unit load – 50 pounds. 4000 pounds maximum unit load.  Total conveyor live load not to to exceed Load Capacity Chart (see catalog page).  For loads less than 50lbs. you must consult the factory.
(For Optional Equipment, Weight Specifications, and Engineering Line Drawings, please see catalog pages, above).Optional ACSI Colors. (Optional colors available at extra cost.)





ACSI Paint Colors
Optional ACSI Paint Colors
(Optional colors available at extra cost)


OPTIONAL EQUIPMENT

Accumulation Zones – 4″ roller centers 36″, 40″, 44″, 48″, 52″, 56″
and 72″ long. 6″ roller centers 36″, 42″, 48″, 54″ and 72″ long. Frame
lengths change with zone lengths.
Tread Rollers – 2-5⁄8″ diameter x 7 gauge steel, 1⁄16″ hex shaft.
Floor Supports – Higher or lower supports available, adjustable or
fixed type.
Side Mounted Drive – Drive unit mounted to side of conveyor in
lieu of underneath conveyor frame. 14″ minimum elevation to the
top of roller.
Conveyor Speed – Constant and variable speeds between 10 and
70 FPM available.
Limit Switch – To provide signal for customers infeed equipment.
Time Delay – Allows for product to be unloaded from discharge
zone of conveyor without immediate movement of next load into
discharge zone.
Motor – Single phase, energy efficient, explosion proof, etc. Other
HP available.
Electrical Controls – Magnetic starters and push button stations;
manual motor starters with overload protection, others.
Optional Loads – Capacity available to 6000 Ibs. unit loads.
Rollers Set High – Rollers set 1⁄4″ high above side rail. Frame is
11-3⁄8″ deep x 7 gauge formed steel channel.
