MODEL “251CRRCT”

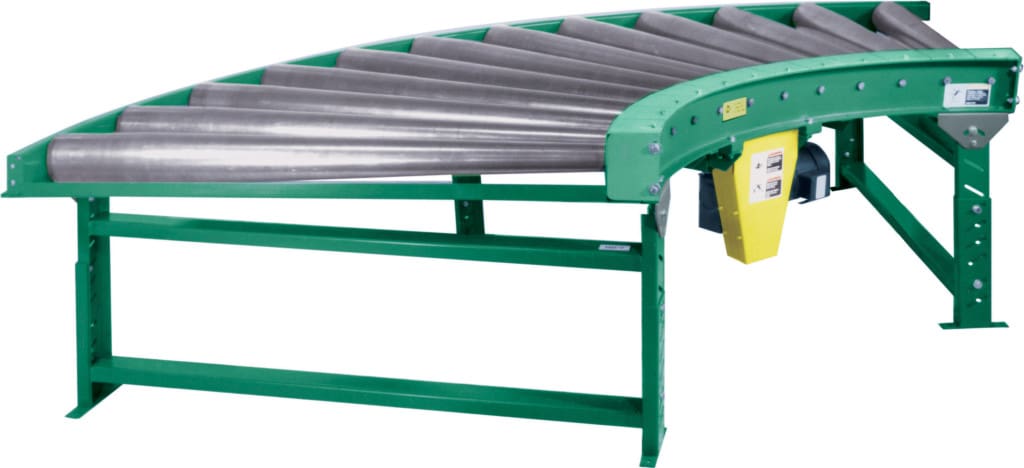

Heavy Duty Chain Driven Tapered Roller Curve

Applications / Features:

  • Pallets
  • Drums
  • Positive Drive
  • Oily Conditions



Online Resources:




STANDARD SPECIFICATIONS

Bed – Conveying surface width 28″, 34″, 40″, 46″, 52″, 58″ and 64″. Tapered tread rollers mounted in 4″ and 6″ x 4 gauge powder painted formed steel channel frame. Sections are bolted together with butt couplings and floor supports.
Drive Chain – No. 50 roller chain.
Floor Supports – Heavy duty supports are adjustable 30-1⁄4″ to 40″ from floor to top of roller. One support at each end of conveyor and one center leg with knee brace.
Center Drive – Mounted underneath conveyor.
Bearings – Sealed, prelubricated ball bearings.
Chain Guard – Lower chain guard is mounted on bottom of roller frame, and upper chain guard is mounted above roller frame to totally enclose drive chain.
Speed Reducer – Heavy duty worm gear C-Face mounted.
Motor – 3⁄4 HP 230/460/3-60 TE motor.
Capacity – 4000 Ibs. distributed live load.
Speed – 30 FPM.
(For Optional Equipment, Weight Specifications, and Engineering Line Drawings, please see catalog pages, above).



ACSI Paint Colors
Optional ACSI Paint Colors
(Optional colors available at extra cost)


OPTIONAL EQUIPMENT

Floor Supports – Lower or higher supports are available. Minimum elevation, 18″ from floor to top of rollers.
Motor – Single phase, energy efficient, explosion proof, etc. Other HP available.
Electrical Controls – Magnetic starters and push button stations; manual motor starters with overload protection, others.
Roller Speed – Constant and variable speeds available.
Rollers Set Low – 5”deep x 4 gauge non-driven side rail to provide 3⁄4″ high guard rail.



Pallets, drums,positive drive, oily, chain driven, cdlr
