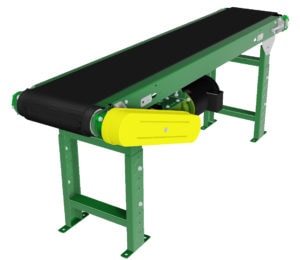

MODEL “LPB”

Medium Duty Slider Bed Belt Conveyor



Applications / Features:

  • Packing
  • Inspecting
  • Sorting
  • Assembly
  • Testing
  • Transporting



Online Resources:



STANDARD SPECIFICATIONS

Belt – 8″, 12″, 18″, 20″, 24″ and 30″ Black PVC 120 Belt.
Bed – 12 gauge powder painted formed steel, 4″ deep. Bed sections are 5 feet and 10 feet long, bolted together with spice plates and floor supports.
Tail Pulley – 4″ diameter crowned with 1-3/16″ diameter shaft.
Drive Pulley – 4″ diameter and 8″ diameter crowned and fully lagged. 4″ diameter pulley with 1-3/16″ diameter shaft, 8″ diameter pulley with 1-7/16″ diameter shaft.
Snub Roller – 2″ diameter (for 4″ diameter drive pulley), 2-1/2″ diameter (for 8″ diameter drive pulley).
Return Roller – 1.9″ diameter adjustable on 10’0″ centers.
Floor Supports – Adjustable 28-1/2″ to 42-1/2″ from floor to top of belt. One support supplied at each end of conveyor and at each bed joint.
Take-Up – 6″ long screws located at tail pulley to provide belt tension.
Bearings – Sealed and pre-lubricated with cast iron housings.
Speed Reducer – C-Face mounted heavy duty worm gear reducer.
Motor – 1/2 HP 230/460-3-60 TE motor.
Belt Speed – 60 FPM constant.
Capacity – Maximum load per lineal foot of conveyor – 75 lbs. Not to exceed Load Capacity Chart (see catalog page).
(For Optional Equipment, Weight Specifications, and Engineering Line Drawings, please see catalog pages, above).





color chart
Optional ACSI Colors
(Optional colors available at extra cost)


OPTIONAL EQUIPMENT

Belt – Nitrile (white or black) with smooth top cover, Black PVC rough top, Brown Nitrile rough top. Special belts on application.
Side Tables – 10″, 16″ or 22″ wide formed steel side tables provide 12″, 18″ or 24″ work area. Tables are supported by angles bolted to bed section.
Guard Rails – Adjustable channel, continuous channel, or solid steel guard rails available.
Floor Supports – Lower or higher than standard. Castered supports with 4″ diameter or 6″ diameter rigid or swivel casters.
Ceiling Hangers – 1⁄2″ diameter threaded rods 8 feet long with locking nuts and mounting hardware. Other lengths are available.
Gravity Conveyor Brackets – Adjustable bracket with 13⁄8″ diameter pop-out roller for attaching wheel or roller conveyor.
Nose-Over – Adjustable single or double nose-over provides smooth transfer from incline to horizontal. See drawing on page 96 for details.
Center Drive – Mounted below conveyor bed section. Can be placed most anywhere in conveyor length.
Side Mounted Drive – End drive mounted to side of conveyor section. Specify side. Minimum 6″ elevation with 4″ drive pulley, minimum 9″ elevation with 8″ drive pulley.
Overhead Drive – End drive mounted above conveyor. Specify clearance required.
Auxiliary Take-Up – Mounted below conveyor bed section. Can be placed most anywhere in conveyor length.
Motor – Single phase, energy efficient, explosion proof, etc. Other HP available.
Belt Speed – Constant and variable belt speeds available.
Electrical Controls – Magnetic starters and push button stations; manual motor starters with overload protection, others.
