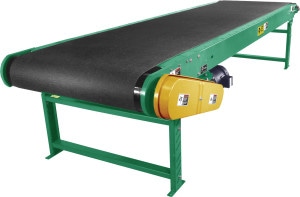

MODEL “HPB”

Heavy Duty Slider Bed Conveyor



HPB

Applications / Features:

  • Packing
  • Inspecting
  • Sorting
  • Assembly
  • Testing
  • Transporting



Online Resources:




STANDARD SPECIFICATIONS

Belt – 12″, 14″, 18″, 24″, 30″ and 36″ Black PVC 120 Belt.
Bed – 12 gauge powder painted formed steel, 6-1/2″ deep. Bed sections are 5 feet and 10 feet long, bolted together with spice plates and floor supports.
Tail Pulley – 4″ diameter for belt widths through 30″ wide. 6″ diameter for 36″ and wider belts. 4″ diameter pulley has 1-3/16″ diameter shaft, 6″ diameter pulley has 1-7/16″ diameter shaft turned down on ends to 1-3/16″ diameter.
Drive Pulley – 8″ diameter crowned and fully lagged with 1-7/16″ diameter shaft.
Snub Roller – 2-1/2″ diameter directly behind drive pulley; 2″ diameter at tail pulley.
Return Roller – 1.9″ diameter adjustable on 10’0″ centers.
Floor Supports – Adjustable 31″ to 45″ from floor to top of belt.
Take-Up – 6″ long screws located at tail pulley to provide belt tension.
Bearings – Sealed and pre-lubricated with cast iron housings.
Speed Reducer – C-Face mounted heavy duty worm gear reducer.
Motor – 1/2 HP 230/460-3-60 TE motor.
Belt Speed – 60 FPM constant.
Capacity – Maximum load per lineal foot of conveyor – 100 lbs. Not to exceed Load Capacity Chart (see catalog page).
(For Optional Equipment, Weight Specifications, and Engineering Line Drawings, please see catalog pages, above).





color chart
Optional ACSI Colors
(Optional colors available at extra cost)


OPTIONAL EQUIPMENT

Belt – Nitrile (white or black) with smooth top cover, Black PVC rough top, Brown Nitrile rough top. Special belts on application.
Guard Rails – Adjustable channel, continuous channel, or solid steel guard rails available.
Floor Supports – Lower or higher than standard. Castered supports with 4″ diameter or 6″ diameter rigid or swivel casters.
Ceiling Hangers – 1⁄2″ diameter threaded rods 8 feet long with locking nuts and mounting hardware. Other lengths are available.
Gravity Conveyor Brackets – Adjustable bracket with 13⁄8″ diameter pop-out roller for attaching wheel or roller conveyor.
Nose-Over – Adjustable single or double nose-over provides smooth transfer from incline to horizontal. See drawing on page 96 for details.
Center Drive – Mounted below conveyor bed section. Can be placed most anywhere in conveyor length.
Side Mounted Drive – End drive mounted to side of conveyor section. Specify side. Minimum elevation – 9″.
Overhead Drive – End drive mounted above conveyor. Specify clearance required.
Auxiliary Take-Up – Mounted below conveyor bed section. Can be placed most anywhere in conveyor length.
Motor – Single phase, energy efficient, explosion proof, etc. Other HP available.
Belt Speed – Constant and variable belt speeds available.
Electrical Controls – Magnetic starters and push button stations; manual motor starters with overload protection
