Automated Conveyor Systems, Inc.

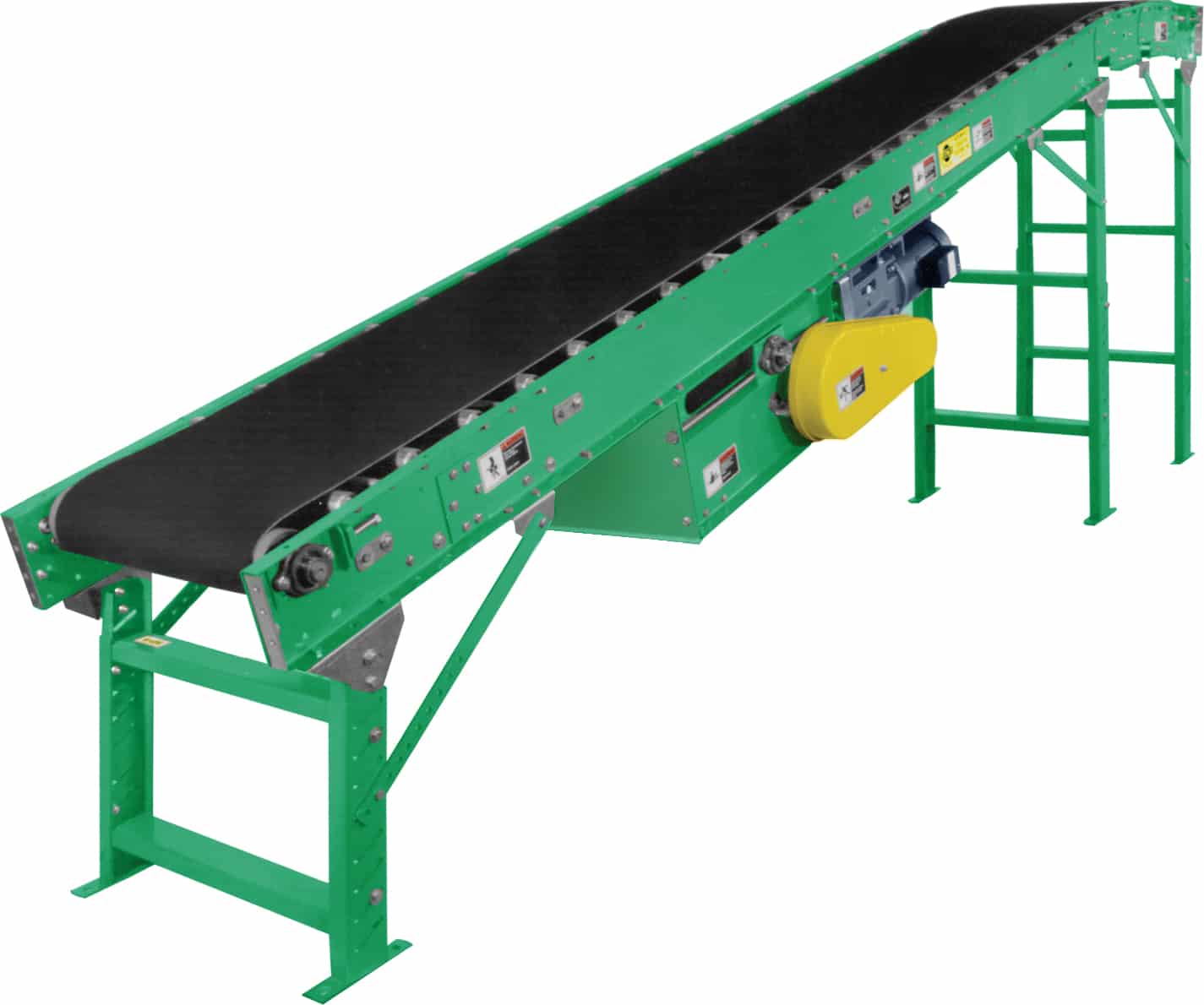

MODEL “190RBI”

Inclined Roller Bed Conveyor

190RBI

Applications / Features:

  • Transporting Between Floors
  • Booster Conveyor for Gravity Flow Systems
  • Heavier Loads Can be Conveyed Because of Less Friction Build-up



Online Resources:




STANDARD SPECIFICATIONS

Belt – 12″, 16″, 18″, 20″, 24″ and 30″ wide rough-top belt.
Bed
– Roller bed with 1.9″ diameter x 16 gauge galvanized rollers spaced on 6″ centers. Rollers mounted in 7″ x 1-1/2″ x 12 gauge powder painted formed steel channel frames.  Frames bolted together with butt couplings.
Under-Trussed Bed
– Extra reinforcement to prevent sag in longer bed sections in addition to reinforcing angles, 20 feet and longer.
X-Bracing
– Supplied on conveyors 40 feet and longer.  Used to square bed sections to insure proper product and belt tracking.
Double Nose-Over
– Adjustable from 0° to 30°.
Center Drive
– Mounted below conveyor bed section. Can be placed most anywhere in conveyor length.
Tail Pulley
– 4″ diameter, crowned with 1-3/16″ diameter shaft through 30″ wide belt.  6″ diameter tail pulley with 1-7/16″ diameter shaft turned down on ends for wider than 30″ belt.
Drive Pulley
– 8″ diameter and fully lagged, 1-7/16″ diameter shaft.
Snub Roller
– 2-1/2″ diameter at drive pulley, 2″ diameter at terminal pulleys.
Return Roller
– 1.9″ diameter.
Take-Up
– Located in center drive, provides 24″ of belt take-up.
Gravity Brackets
– Adjustable rod with 1-3/8″ diameter pop-out transfer roller to attach wheel or 1-3/8″ diameter roller conveyor.
Bearings
– Sealed prelubricated with cast iron housings.
Floor Supports
– Adjustable 31-1/2″ to 45-1/2″ from floor to top of belt.  One support supplied at each end of conveyor and at noseover, with knee braces.
Speed Reducer
– C-Face mounted heavy duty worm gear reducer.
Motor
– 3/4 HP 230/460-3-60 TE motor.
Belt Speed
– 60 FPM constant.
Capacity
– See Load Capacity Chart.
(For Optional Equipment, Weight Specifications, and Engineering Line Drawings, please see catalog pages, above).





color chart
Optional ACSI Colors
(Optional colors available at extra cost)


OPTIONAL EQUIPMENT

Belt – Neoprene ruff-top, PVC rough-top, other types and styles.
Guard Rails – Adjustable channel, continuous channel, or solid steel guard rails available.
Ceiling Hangers – 1⁄2″ diameter threaded rods 8 feet long with locking nuts and mounting hardware. Other lengths are available.
Floor Supports – Lower or higher than standard.
Lower Powered Feeder Section – Separate belt section with (2) supports, adjustable from 28-1⁄2″ to 42-1⁄2″. Driven by roller chain from tail pulley of inclined section. Integral feeders available.
Motor – Single phase, energy efficient, explosion proof, etc. Other HP are available.
Belt Speed – Constant and variable belt speeds available.
Electrical Controls – Magnetic starters, push button stations; manual motor starters with overload protection, others.
Single Noseover – Available.
