MODEL “SPC”

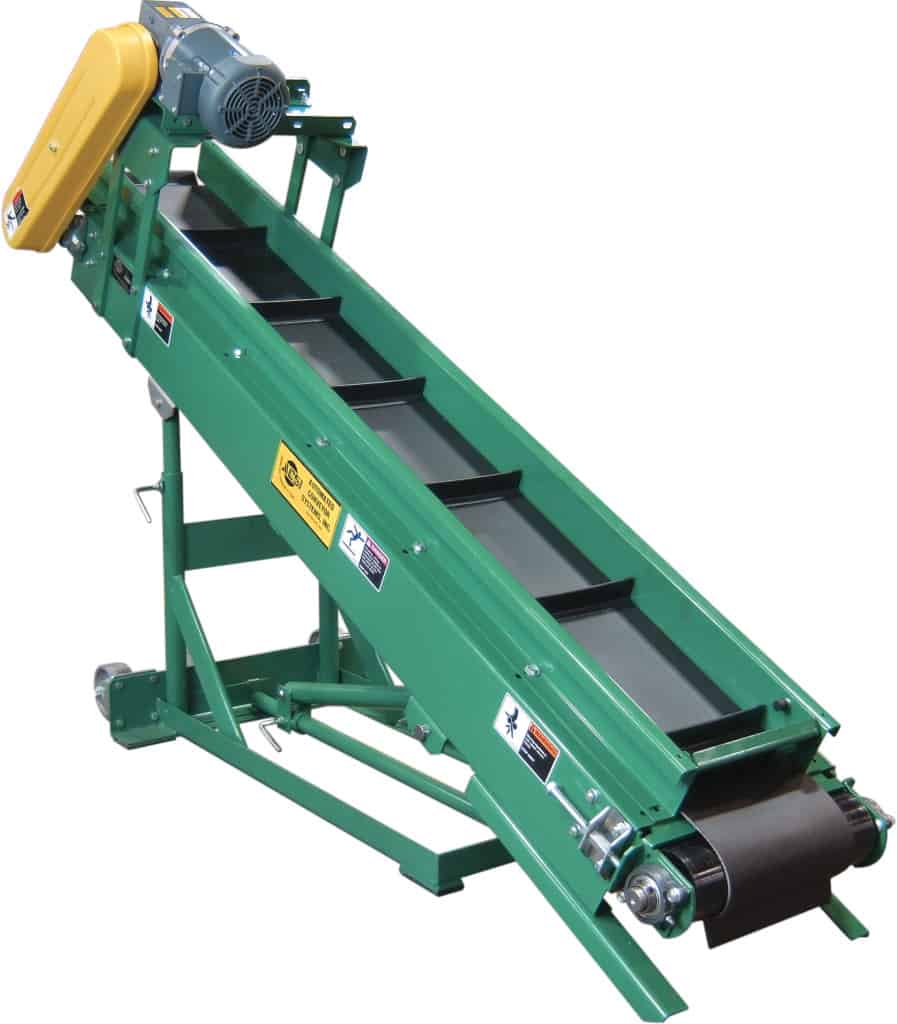

Portable Belt Conveyor

SPC

Applications / Features:

  • Stamping Operations
  • Small Parts
  • Portable or Permanent



Online Resources:




STANDARD SPECIFICATIONS

Belt – 3 ply PVG (Oil resistant PVC) with 1-1/2″ high molded cleats on 12″ centers.  Available in widths of 4″, 6″, 8″, 10″, 12″, 16″, 18″ and 24″.
Bed
– 6-1/2″ deep x 12 gauge powder painted formed steel with 3-1/2″ high solid guard rails both sides.
Tail Pulley
– 4″ diameter crowned with 1-3/16″ diameter shaft.
Overhead Drive
– 10″ clearance over belt, standard.
Drive Pulley
– 4″ diameter crowned and fully lagged with 1-3/16″ diameter shaft.
Belt Return
– Belt is returned on smooth sheet metal slide.
Take-Up
– 6″ long screws located at tail pulley to tighten belt.
Portable Supports
– Heavy duty pipe support with 4″ diameter casters permit easy mobility of conveyor.
Bearings
– Sealed pre-lubricated with cast iron housings.
Speed Reducer
– C-Face mounted heavy duty worm gear reducer.
Motor
– 1/2 HP 230/460-3-60 TE motor.
Belt Speed
– 60 FPM constant.
Capacity
– Total distributed live load not to exceed Capacity Chart.
(For Optional Equipment, Weight Specifications, and Engineering Line Drawings, please see catalog pages, above).





ACSI Paint Colors
Optional ACSI Paint Colors
(Optional colors available at extra cost)


OPTIONAL EQUIPMENT

Belt – 1⁄2″ x 1″ flat wire mesh with 1-1⁄2″ high angle cleats bolted on 12″ centers. Others.
Bed – Special bed sizes and special material such as stainless steel, galvanized, etc.
Supports – Permanent type with adjustment.
Hopper – Infeed hopper located on tail pulley end. Sized to suit application.
Motor – Single phase, energy efficient, explosion proof, etc. Other HP available.
Electrical Controls – Magnetic starters and push button stations; manual motor starters with overload protection, others.
Belt Speed – Constant and variable belt speeds available.



Stamping operation, small parts, portable
