MODEL “Air Operated Blade / Roller Stop”

Air Operated Blade / Roller Stop

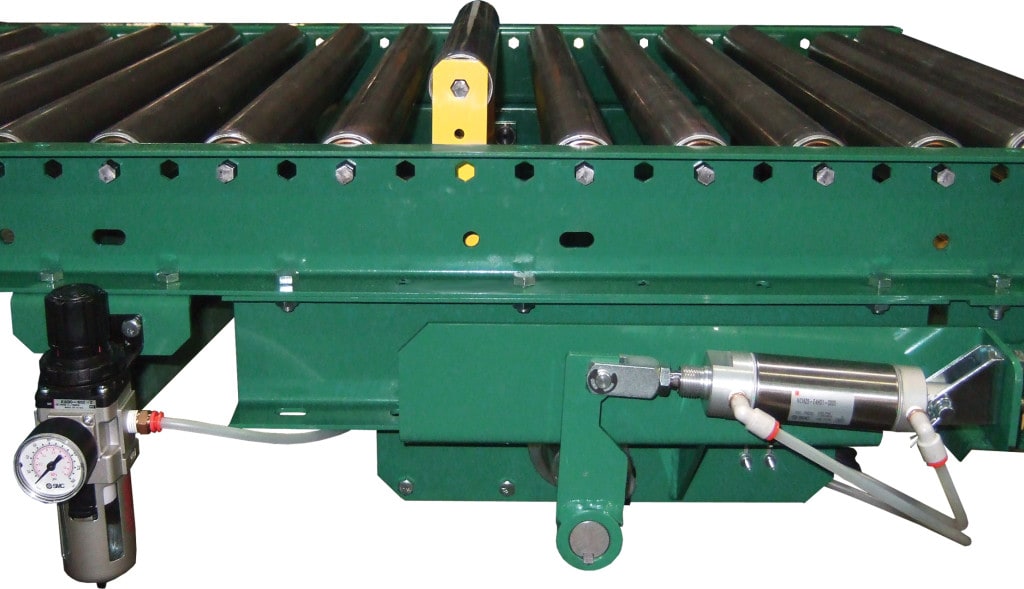

Air Operated Roller Stop



Applications / Features:

  • Air Operated Stops are used where automatic line control is required such as assembly work stations, shipping areas, etc.
  • Can be mounted to underside of models 138SR, 190SR, 20SR, 190CAP, 138CAP, 190ZPA.



Online Resources:






STANDARD SPECIFICATIONS

Capacity – Blade -150 Ibs., 1-3⁄8″ roller – 50 Ibs., 1.9″ diameter roller -150 Ibs.  All are live load capacities @ 60 FPM.
Bearings
– High capacity (2) bolt flange bearings.
Stop
– 1-3⁄8″ diameter x 18 gauge unplated steel roller for 1-3⁄8″ conveyors.  1.9″ diameter x 16 gauge galvanized steel roller for 1.9″ x 2.0″ conveyors.
Blade
– 1⁄4″ steel plate.
Position
– Supplied normally down.  Can be supplied normally up specify.
Air Cylinder
– 11⁄4″bore x 2″ stroke double acting air cylinder to raise or lower stop.
Air Requirements
– Minimum pressure 60 PSI, maximum 100 PSI.  Free air consumption @ 60 PSI – .014 cu. ft. per cycle, @ 100 PSI – .022 cu.ft.
Valve
– Single solenoid 4 way valve. 1⁄4″ spring return- 20 NPT valve ports.
Electrical requirements
– 120V, single phase, 60 Hertz. Current draw – .068 amps, or 24VDC.
