MODEL “Air Operated Chain Transfer”

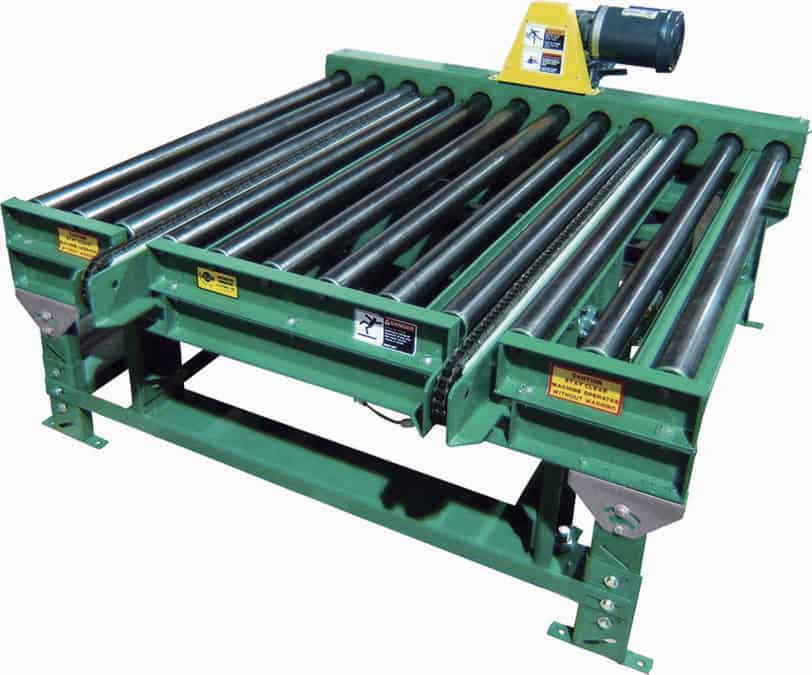

Air Operated Chain Transfer

Online Resources:






STANDARD SPECIFICATIONS

Capacity – 2,000 Ibs. unit load. (Higher capacities available.)
Chain
– Two strands of #60 high side bar roller chain; min. 10″ chain centers.
Mounting
– Designed to install in standard “251CRR” frames.
Speed
– 30 FPM constant.
Cycles
– Up to 4 cycles per minute.
Air Requirements
– Min. pressure 60 PSI, max. pressure 125 PSI.
Free air consumption @ 60 PSI .035 cu.ft. per cycle.
Electrical requirements
– 120V, single phase, 60 Hz. Current draw – .07 amps, or 24VDC.
Motor
– 3⁄4 HP 230/460-3-60 TEFC motor.
Electrical Controls
– None furnished as standard.

INSTALLATION NOTE: To eliminate contaminants in air supply line, a filter, regulator,
(FR) should be installed prior to valve.
