MODEL “Auto-Sort Air Operated Wheel Diverter”

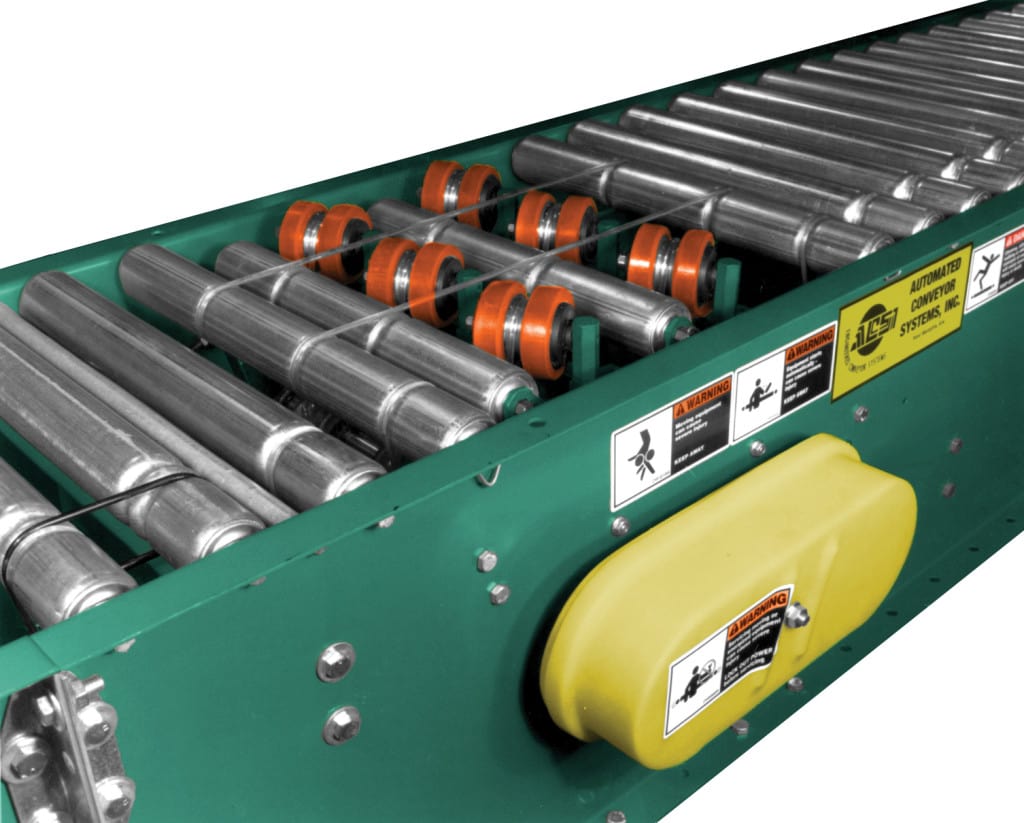

Auto-Sort Air Operated Wheel Diverter

Wheel Diverter

Online Resources:




STANDARD SPECIFICATIONS

Capacity – 75 Ibs. max. package weight.
Package Size
– Min. 6″ wide x 9″ long, max. 25″ wide x 36″ long.
Cycles
– Up to 40 times per minute.
Speeds
– Wheels 180 FPM.
Mounting
– Mounts in “190LS” conveyor.  Being modular in design, it can be located almost anywhere in length of conveyor. Specify right hand or left hand operation.
Diverting Wheels
– Consists of a double row of 3″ diameter wheels spaced proportionately across conveyor width.  Driven by high capacity poly belts by it’s own drive.  May also be slave driven- consult factory.
Supports
– Minimum elevation 21″.  Specify height conveyor will be installed.
Air Cylinder
– 2″ bore x 1″ stroke double acting.
Air Requirements
– Min. pressure 60 PSI, maximum 125 PSI.  Free air consumption @ 60 PSI – .018 cu.ft.per cycle.
Valve
– Single solenoid 4 way valve.  1⁄4″- 20 NPT valve ports.
Electrical requirements
-120V, single phase, 60 Hertz, current draw .07 amps, or 24VDC.
Motor
– 1⁄2 HP 230/460-3-60 TE motor.
Speed Reducer
– Heavy duty worm gear, C-Face.
Electrical Controls
– Not furnished as standard equipment.

INSTALLATION NOTE: To eliminate contaminants in air supply line, a filter, regulator, (FR) should be installed prior to valve.
