MODEL “Foot Operated Blade / Roller Stop”

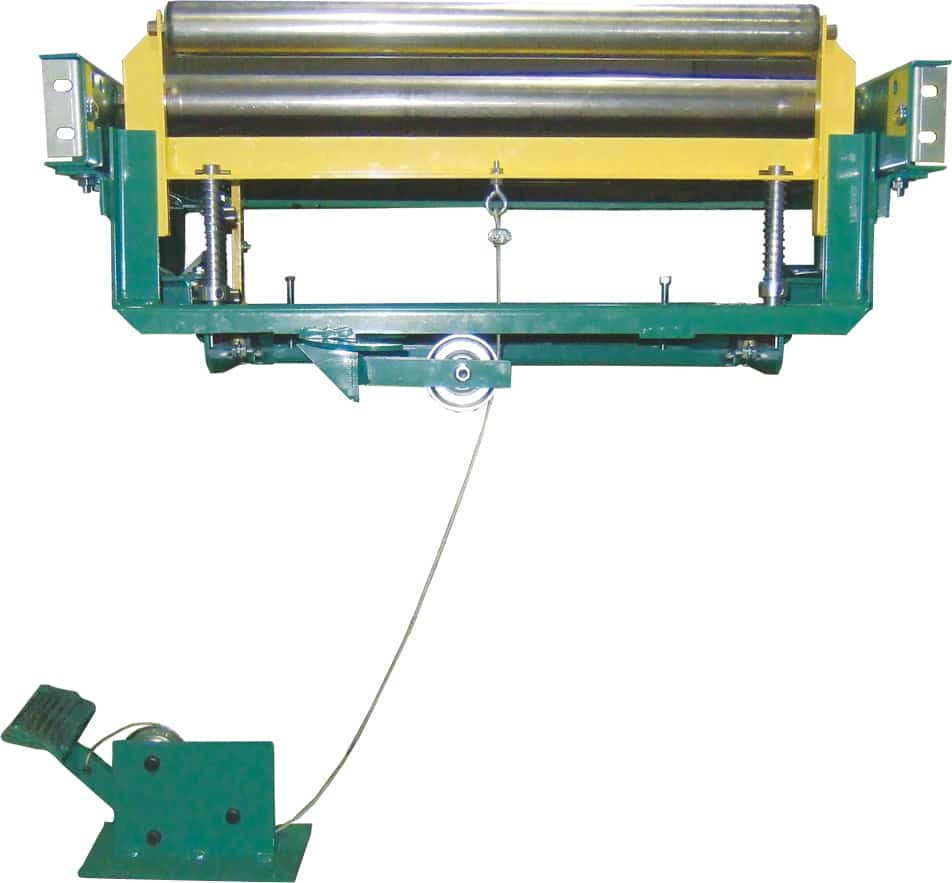

Foot Operated Blade / Roller Stop

Applications / Features:

  • Foot Operated Stops are used where “hands-free” manual line control is required such as assembly work stations, shipping areas, etc.
  • Can be mounted to underside of models 138SR, 190SR, 20SR, 190CAP, 138CAP, 190ZPA.



Online Resources:




STANDARD SPECIFICATIONS

Capacity – Blade – 75 Ibs., 1-3⁄8″ diameter roller – 50 Ibs., 1.9″ diameter roller – 150 Ibs. All are live load capacities @ 60 FPM.

Operation
– Foot operated lever to lower stop. Spring return to up position.


Stop
– Blade – 1⁄4″ steel plate – roller 1-3⁄8″ diameter x 18 gauge galvanized steel roller for 1-3⁄8″
conveyors.  1.9″ diameter x 16 gauge galvanized steel roller for 1.9″ and 2.0″ conveyors.


Position
– Supplied normally up.  Can be supplied normally down – specify.


Stroke
– 1-1⁄2″ above roller.





ACSI Paint Colors
Optional ACSI Paint Colors
(Optional colors available at extra cost)
