Automated Conveyor Systems, Inc.

MODEL “Hand Operated Blade / Roller Stop”

Hand Operated Blade / Roller Stop

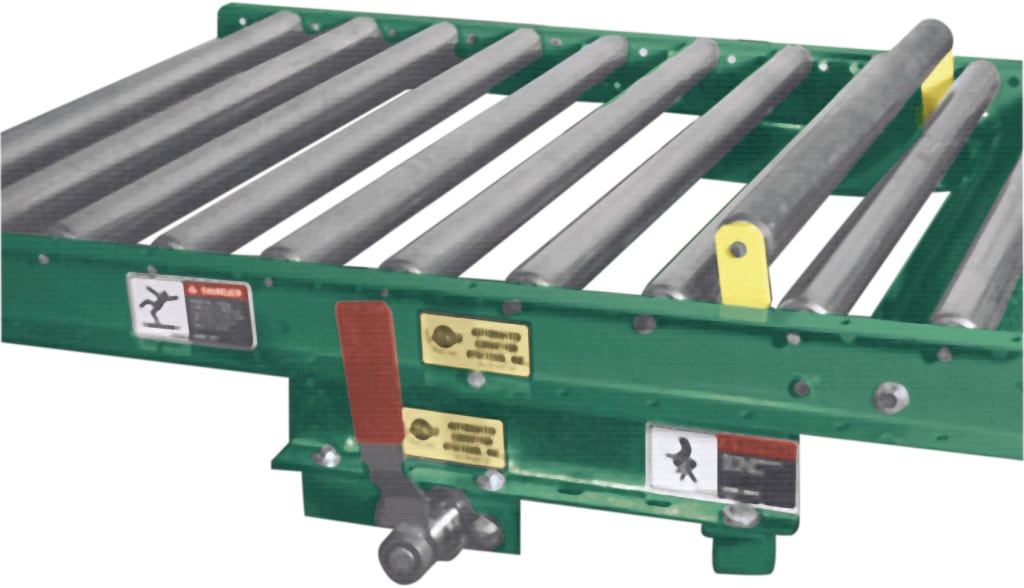

Hand Operated Roller Stop



Applications / Features:

  • Hand Operated Stops are used where manual line control is required such as assembly work stations, shipping areas, etc.
  • Can be mounted to underside of models 138SR, 190SR, 20SR, 190CAP, 138CAP, 190ZPA.



Online Resources:




STANDARD SPECIFICATIONS

Capacity – Blade -150 Ibs., 1-3⁄8″ diameter roller – 50 Ibs., 1.9″ diameter roller -150 Ibs. All are live load capacities @ 60 FPM.
Bearings
– High capacity (2) bolt flange bearings.
Operation
– Hand operated lever to raise or lower stop can be used in normally up or down positions.
Blade
– 7 gauge formed angle 1″ x 1-1⁄2″ for 1-3⁄8″ conveyors – 1-1⁄2″ for 1.9″ and 2.0″ conveyors.
Roller
– 1-3⁄8″ diameter x 18 gauge galvanized steel roller for 1-3⁄8″ conveyors.
1.9″diameter x 16 gauge galvanized steel roller for 1.9″ and 2.0″ conveyors.
Stroke
– 2″ above rollers.





ACSI Paint Colors
Optional ACSI Paint Colors
(Optional colors available at extra cost)
