Automated Conveyor Systems, Inc.

MODEL “Plows – Manual and Pneumatic”

Plows – Manual and Pneumatic

obj1544geo2430pg158p2

Online Resources:






STANDARD SPECIFICATIONS

MANUAL AND PNEUMATIC
Plow Arm
– 5-1⁄2″ x 2″ x 7 gauge
Plow Angle
– 30° or 45°
PNEUMATIC ONLY
Air Cylinder
– 2″ bore double acting 2″ stroke for 30° 3″ stroke for 45°
Air Requirements
– Minimum pressure 60 PSI – max. 100 PSI
Valve
– Single solenoid 4 way valve, 1⁄4″-20NPT valve ports Electrical Requirements: 120V, single phase, 60 Hertz, current draw .07 amps, or 24VDC.

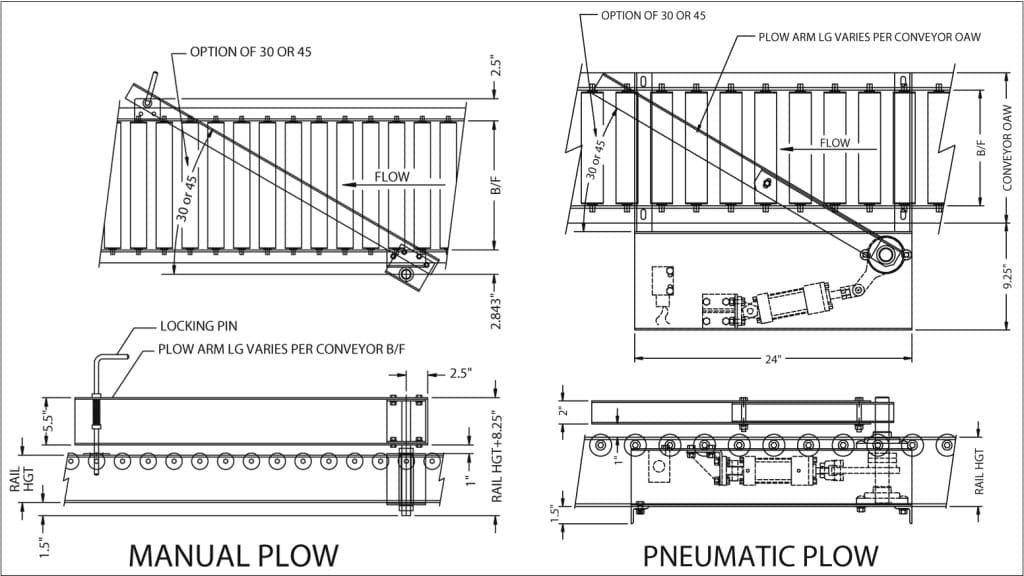

(For Engineering Line Drawings please see catalog pages, above).





ACSI Paint Colors
Optional ACSI Paint Colors
(Optional colors available at extra cost)


OPTIONAL EQUIPMENT

MANUAL AND PNEUMATIC

Plow Arm – 5-1⁄2″ x 2″ x 7 gauge Plow Angle – 30° or 45°

PNEUMATIC ONLY Air Cylinder – 2″ bore double acting 2″ stroke for 30° 3″ stroke for 45°

Air Requirements – Minimum pressure 60 PSI – max. 100

PSI Valve – Single solenoid 4 way valve, 1 ⁄4″-20NPT valve ports Electrical Requirements: 120V,single phase, 60 Hertz, current draw .07 amps, or 24VDC
