Automated Conveyor Systems, Inc.

MODEL “Powered Turntable”

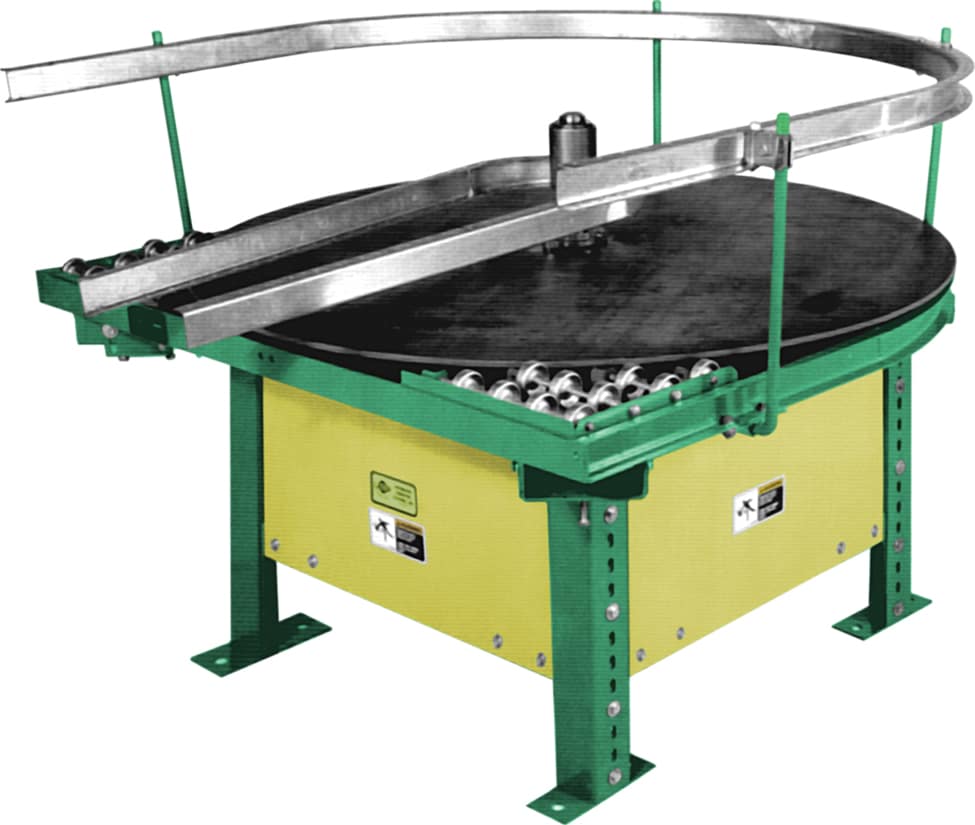

Powered Turntable

Online Resources:






STANDARD SPECIFICATIONS

The Powered Turntable is used when two parallel conveyor lines must be close together with a 180° turn at one (or both) ends.  The turning radius is held to a minimum, less than would be available with gravity or powered curve sections.  Turntable Plow and Guard Rails insure product safety while negotiating 180° turn.  Unit is reversible and all bearings are sealed.  Table top mean speed is 90 FPM.


Motor
– 1⁄2 HP 230/460V-3-60 TE motor.
Capacity
– 500 lbs. total distributed load – maximum unit load – 150 lbs.
Adjustment
– 28″ to 40″ adjustable top of table.
(For Weight Specifications and Engineering Line Drawings, please see catalog pages, above).





ACSI Paint Colors
Optional ACSI Paint Colors
(Optional colors available at extra cost)


OPTIONAL EQUIPMENT

The Powered Turntable is used when two parallel conveyor lines must be close together with a 180° turn at one (or both) ends. The turning radius is held to a minimum, less than would be available with gravity or powered curve sections. Turntable Plow and Guard Rail ensure product safety while negotiating 180° turn. Unit is reversible and all bearings are sealed. Table top mean speed is 90 FPM.
Motor– 1 ⁄2 HP 230/460V-3-60 TE motor.

Capacity – 500 lbs.total distributed load – maximum unit load – 150 lbs.

Adjustment– 28″ to 40″ adjustable top of table.
