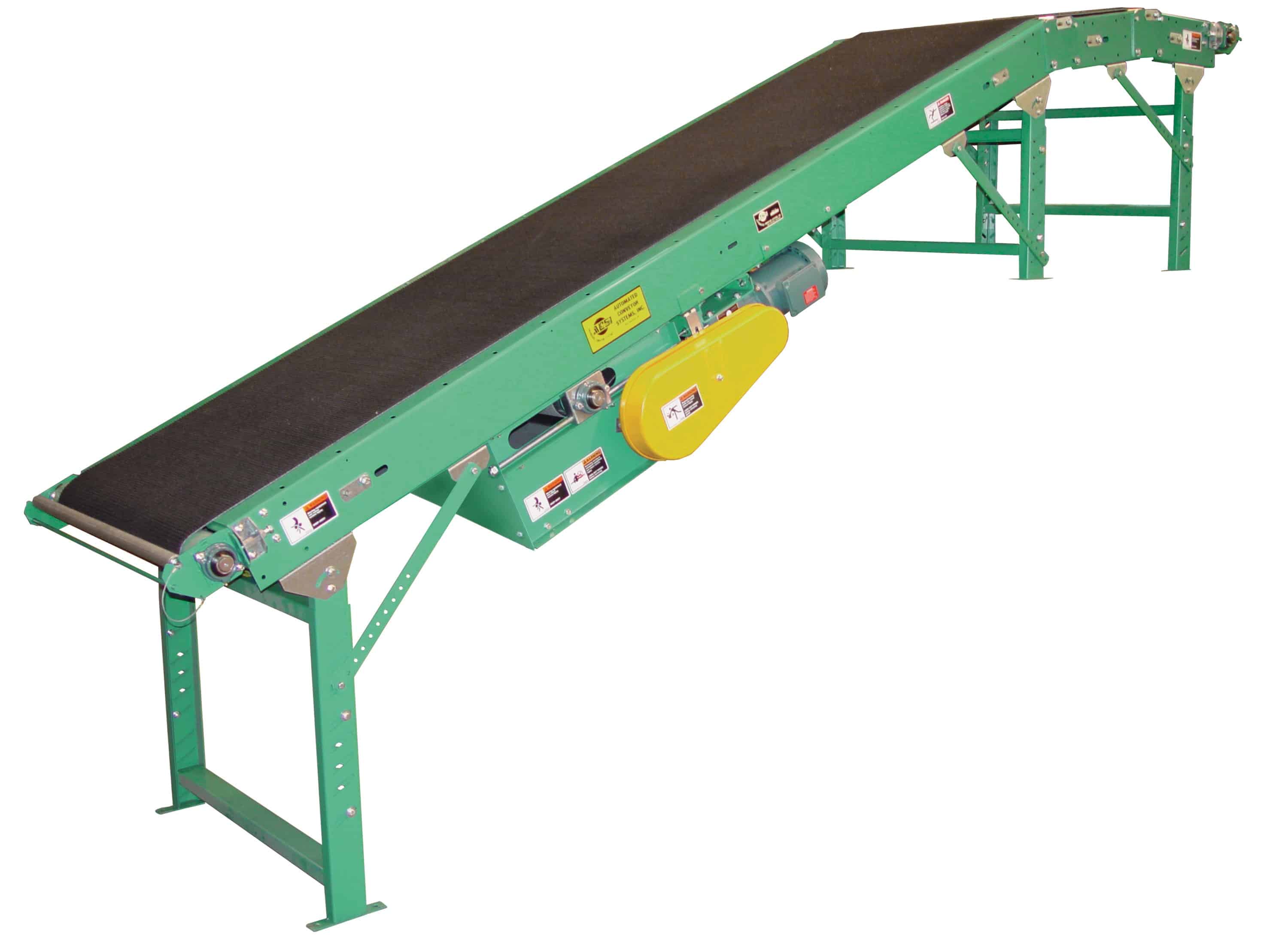

Inclined Slider Bed Conveyor
Applications / Features:
- Booster Conveyor for Gravity Flow Systems
- Transporting Between Floors
- Center Drive
Belt – 14″, 18″, 24″, 30″ and 36″wide rough-top belt.
Bed – 20″, 24″, 30″, 30″, 36″ and 42″ wide 12 gauge powder painted formed steel slider bed. Bed is 6-1/2″ deep x 6 feet, 8 feet or 10 feet long spliced together with splice plates.
Under-Trussed Bed – Extra reinforcement to prevent sag in longer bed sections in addition to reinforcing angles, 24 feet and longer.
Double Nose-Over – Two 16″ long adjustable bed sections provide a two step transition from incline to horizontal with 15° to 35° adjustment.
Tail Pulley – 4″ diameter, crowned with 1-3/16″ diameter shaft through 30″ wide belt. 6″ diameter tail pulley with 1-7/16″ diameter shaft turned down on ends for wider than 30″ belt.
Drive Pulley – 8″ diameter crowned and lagged. 1-7/16″ diameter.
Snub Roller – 2-1/2″ diameter at drive pulley and 2″ diameter at tail pulley.
Return Idlers -1.9″ diameter, adjustable.
Take-Up – Located in center drive assembly, provides 24″ of belt take-up.
Pop-Out Roller – Free floating, 1-3/8″ diameter rollers located at tail pulleys with gravity connector rods. Will lift out if anything is caught between pulleys and rollers.
Floor Supports – Adjustable stands to give 31″ to 45″ height at each end;with knee braces.
Bearings – Sealed prelubricated with cast iron housings.
Speed Reducer – C-Face mounted heavy duty worm gear reducer.
Motor – 3/4 HP 230/460-3-60 TE motor.
Belt Speed – 60 FPM constant.
Capacity – 100 lbs. per foot maximum. Not to exceed Load Capacity Chart.
(For Optional Equipment, Weight Specifications, and Engineering Line Drawings, please see catalog pages, above).
(Optional colors available at extra cost)
Belt – Neoprene ruff-top, PVC rough-top, other types and styles.
Guard Rails – Adjustable channel, continuous channel, or solid steel guard rails available.
Ceiling Hangers – 1⁄2″ diameter threaded rods of 8 feet long with locking nuts and mounting hardware. Other lengths are available.
Floor Stands – Lower or higher than standard.
Lower Powered Feeder Section – Separate belt section with (2) supports, adjustable from 28-1⁄2″ to 42-1⁄2″. Driven by roller chain
from tail pulley of inclined section. Integral feeder available.
Single Nose-Over – A straight section 23-1⁄2″ from tail pulley to center of nose-over roller provides for smooth transition from 0° to
Motor – Single phase, energy efficient, explosion proof, etc. Other HP available.
Belt Speed – Constant and variable belt speeds available.
Electrical Controls – Magnetic starters and push button stations; manual motor starters with overload protection, others
