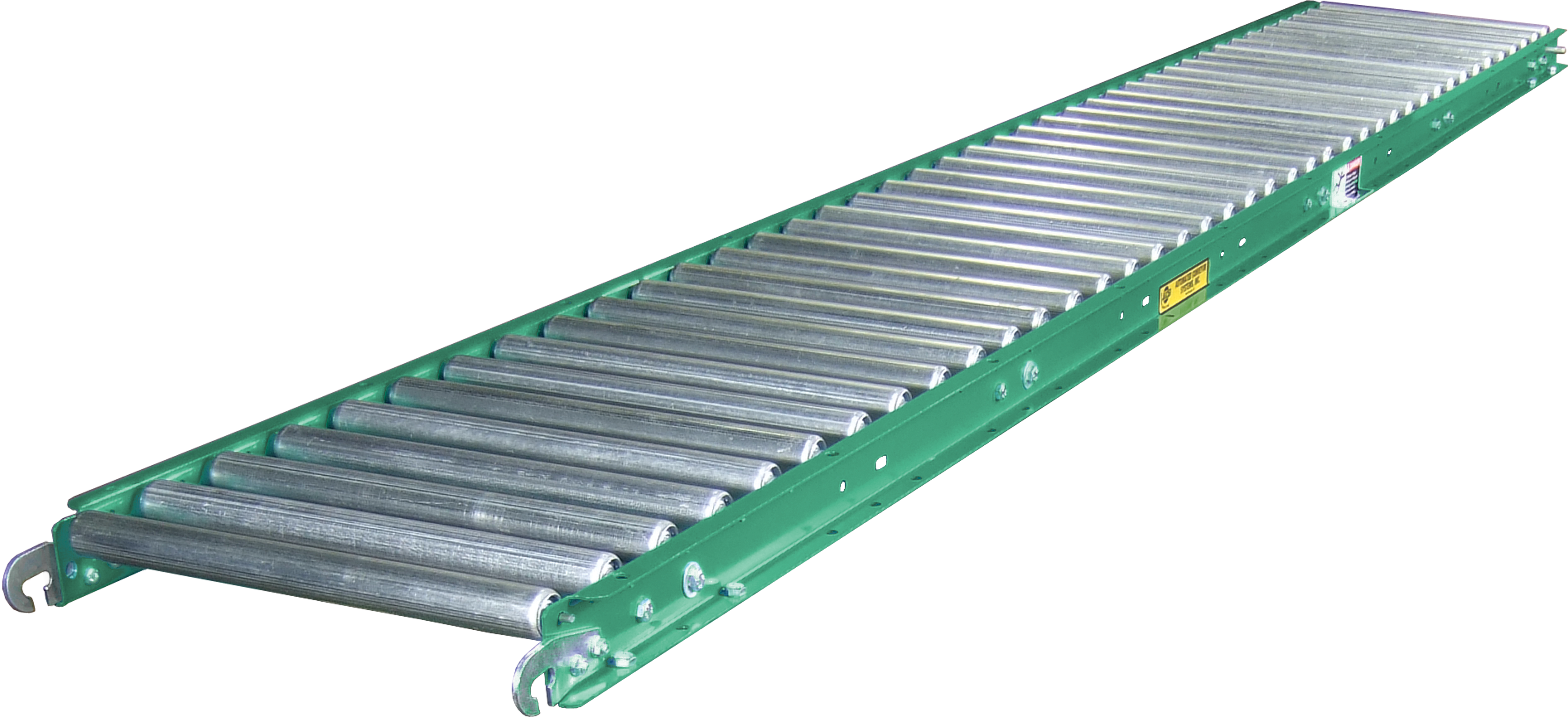

Model “138SR / 138AR / 138SRH” Light Duty Gravity Roller Bed Conveyor
Light Duty Gravity Roller Bed Conveyor
Standard Specifications
Frames — Steel (138SR, 138SRH): 2-1/2" deep x 1" flange x 12 gauge powder painted formed steel. Aluminum (138AR): 2-1/2" deep x 1" flange x 1/8" heat treated aluminum. Rugged cross members bolted between channels.
Rollers — Steel (138SR, 138SRH): 1-3/8" diameter x 18 gauge galvanized steel tubing. Aluminum (138AR): 1-3/8" diameter heat treated aluminum tubing. Swaged ends for a firm bearing seat; spring loaded axle for easy removal or insertion.
Axles — 1/4" diameter cold rolled steel for Models 138SR and 138AR; 5/16" hex for Model 138SRH.
Couplings — Hook and rod.
Widths — 12", 15", 18" and 24" overall width.
Lengths — 5' and 10' long straight sections.
Capacity — See Frame Capacity Chart.
Applications / Features
- ►Cartons
- ►Tote pans
- ►Assembly lines
- ►Shipping departments
