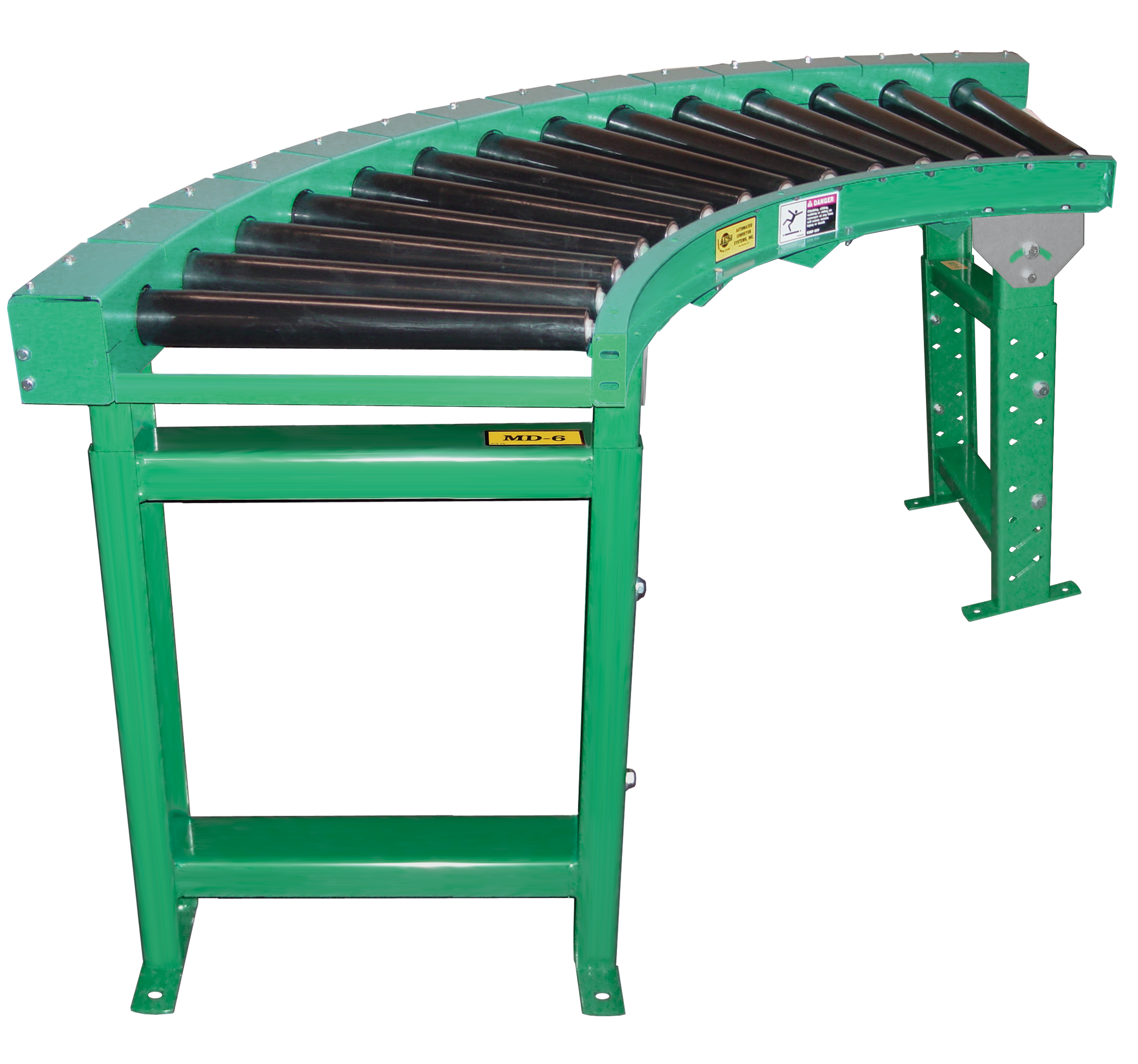

Model “22CRRCT” Medium Duty CDLR Chain Driven Live Roller Curve Conveyor

Drive Chain — No. 40 circular roller chain.

Bed — Conveying surface width 14", 16", 18", 24", 28", and 34". 2-1/2" diameter to 1-11/16" diameter tapered rollers with 7/16" hex shafts are mounted in a 10 gauge powder painted formed steel channel frame. Rollers are roller-to-roller driven.

Chain Guard — Mounted above the frame to totally enclose the drive chain.

Center Drive — Mounted underneath the conveyor in the center of the curve.

Floor Supports — Adjustable 28" to 42" from floor to top of rollers. One support is supplied at each end, with a center leg on the outer rail.

Motor — ½ HP 230/460/3-60 TE motor.

Speed Reducer — C-Face heavy duty worm gear.

Roller Speed — 60 FPM.

Capacity — 850 pounds distributed live load.

Guard Rails — Adjustable channel, continuous channel, and steel guard rails are available.

Floor Supports — Lower or higher supports are available. Minimum elevation is 18" from floor to top of rollers.

Ceiling Hangers — ½" diameter threaded rods, 8 feet long, with locking nuts and mounting hardware. Other lengths are available.

Side Mounted Drive — Drive mounted to the side of the conveyor bed. Minimum elevation to top of rollers is 6". Specify side.

Rollers Set Low — Tread rollers mounted low in a 4-1/2" x 10 gauge formed steel channel frame to form ¾" high guard rails.

Motor — Single phase, energy efficient, explosion proof, and other motor options are available.

Roller Speed — Constant and variable roller speeds are available.

Electrical Controls — Magnetic starters and push button stations; manual motor starters with overload protection; others.

Slave Drive — The 22CRRCT can be slave driven.
