Model Wheel Rails

Model “Wheel Rails”

Wheel Rails

Wheel Rails

Standard Specifications

Load Capacity Chart Frame — 12 Ga. powder painted formed HRS steel.

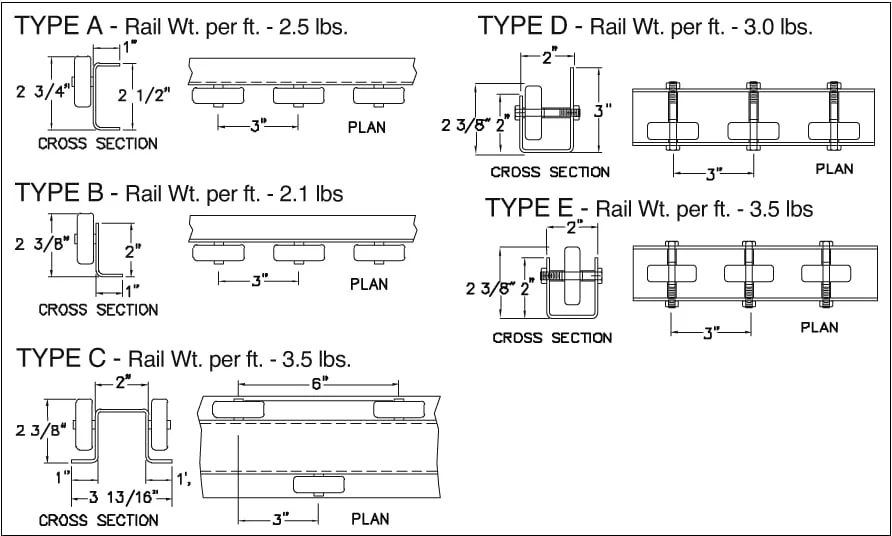

TYPE B — Rail Wt. per ft. - 2.1 lbs Support Maximum Load Per Foot (lbs.) TYPE E - Rail Wt. per ft. - 3.5 lbs Centers Type A Type B Type C Type D Type E

Request a Quote ↓ Download Spec Sheet
WHEEL RAILS

Applications / Features

  • ►Skatewheel conveyor installation
  • ►Five rail types for different load requirements
