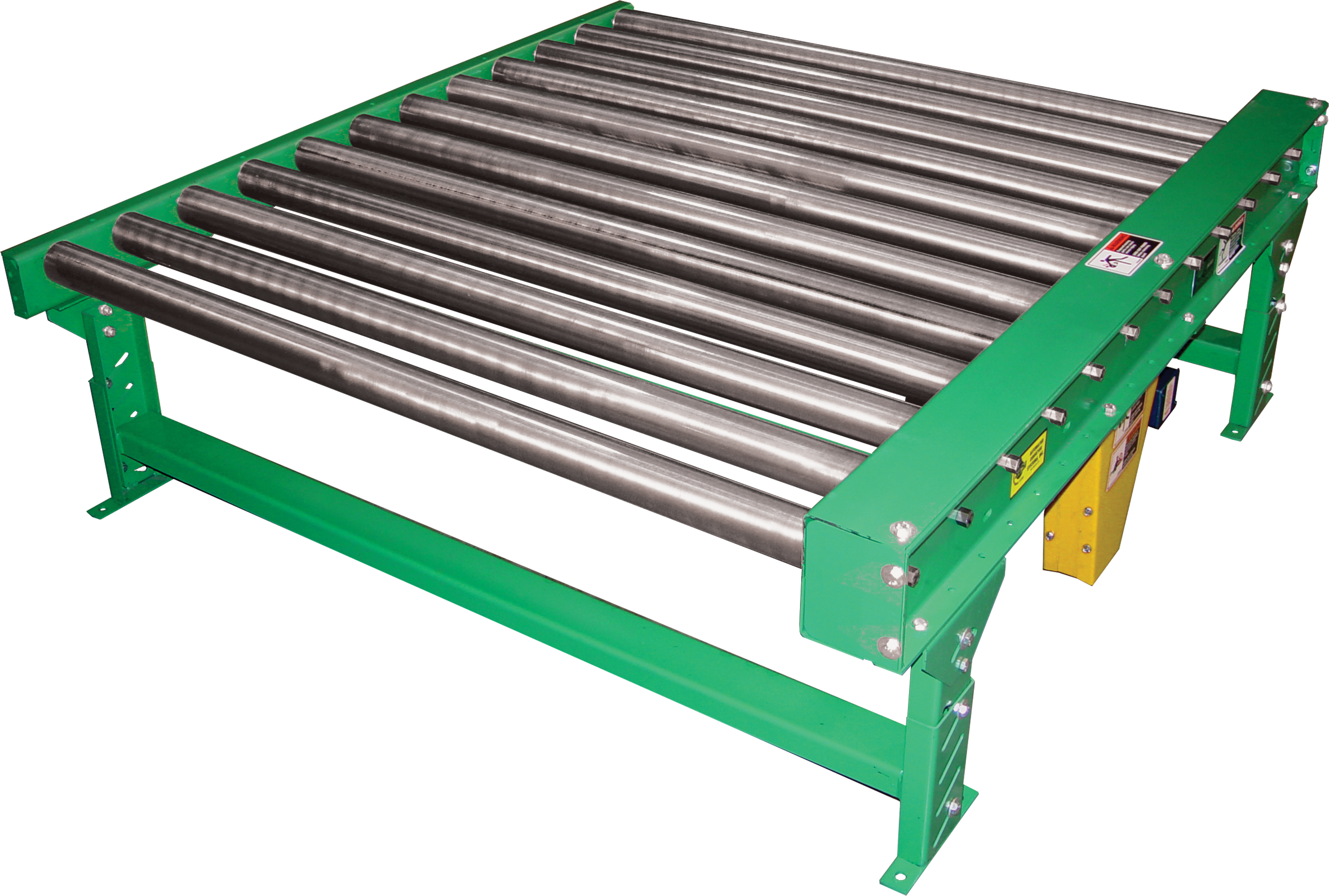

Model “251CRR / 267CRR” Heavy Duty CDLR Chain Driven Live Roller Conveyor

Bed — Conveying surface width 28", 34", 40", 46", 52", 58", and 64". 2-1/2" diameter x 11 gauge and 2-5/8" x 7 gauge steel tread rollers, 1-1/16" hex shafts. No. 50 chain is used on 5", 7-1/2", 10" roller centers only. No. 60 chain is used on 6", 7-1/2", and 12" centers only. Tread rollers mounted in 4" and 6" x 4 gauge powder painted formed steel channel frame. Sections are bolted together with butt couplings and floor supports.

Drive Chain — No. 50 roller chain or No. 60 roller chain can be used with either the 251CRR or 267CRR as above.

Floor Supports — Heavy duty supports are adjustable 30-1/4" to 40" from floor to top of roller. One support at every bed joint and each end of conveyor.

Center Drive — Mounted underneath conveyor, center of section. Can be placed most anywhere in conveyor length.

Bearings — Sealed, prelubricated ball bearings.

Chain Guard — Lower chain guard is mounted on bottom of roller frame, and upper chain guard is mounted above roller frame to totally enclose drive chain.

Speed Reducer — C-Face mounted heavy duty worm gear reducer.

Motor — 3/4 HP 230/460/3/60 TE motor.

Speed — 30 FPM.

Capacity — Maximum load per linear foot of conveyor; 300 lbs. with supports on 10' centers, 1000 lbs. with supports on 5'0" centers.

Floor Supports — Lower or higher supports are available. Minimum elevation, 18" from floor to top of rollers.

Side Mounted Drive — Motor-reducer unit can be mounted to side of conveyor frame. Drive is higher than conveyor frame. Minimum elevation to top of rollers is 7".

Roller Set Low — 5" deep x 4 gauge non-driven side rail to provide 3/4" high guard rail.

Motor — Single phase, energy efficient, explosion proof, etc. Other HP available.

Roller Speed — Constant and variable speeds available.

Electrical Controls — Magnetic starters and push button stations; manual motor starters with overload protection, others.
