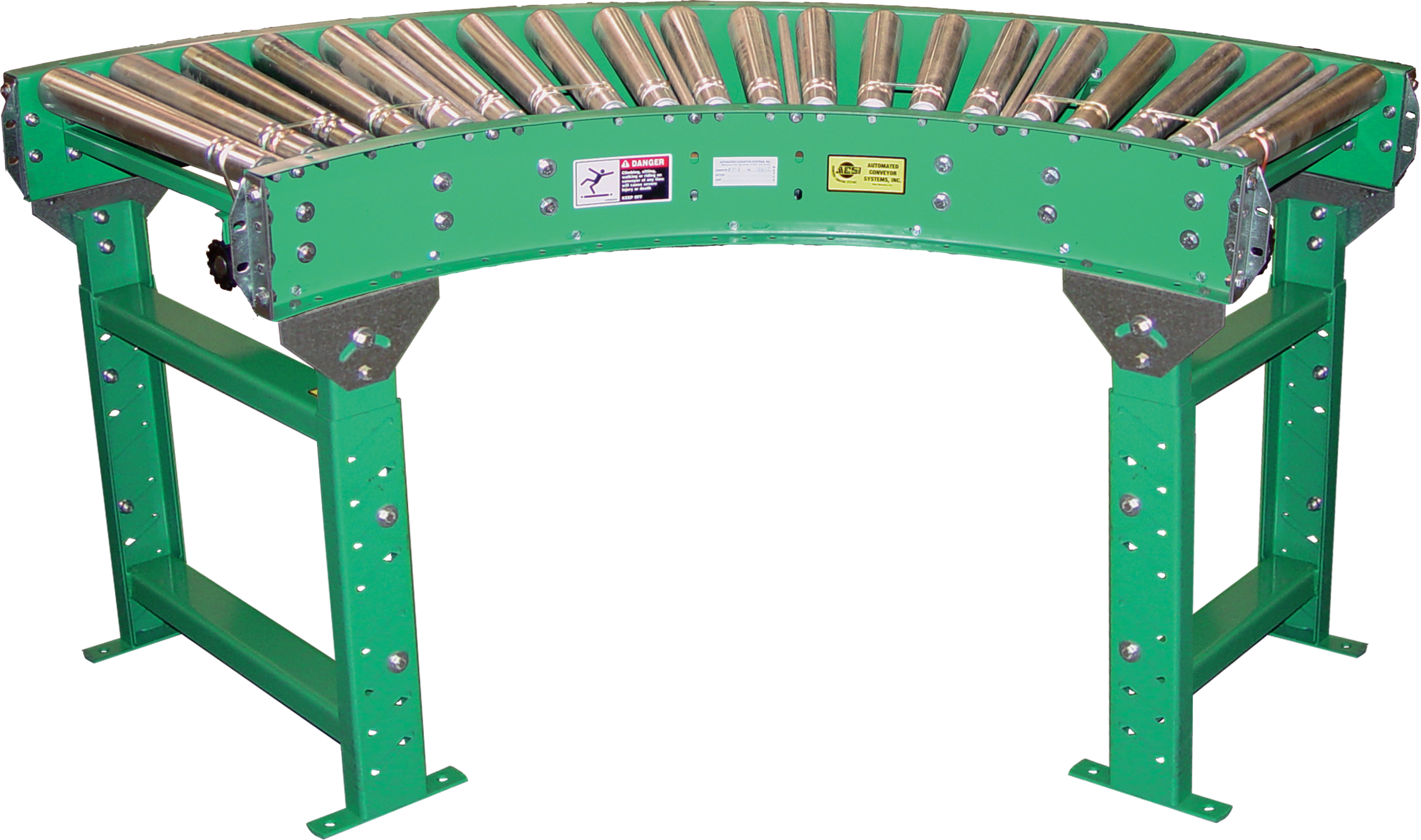

Model “190LSC / 190LSCS / 190LSS”

Bed — Roller bed with 2½" diameter tapered to 111⁄16" diameter x 14 gauge galvanized and 1.9" diameter x 16 gauge galvanized tread rollers. Mounted in 7" x 12 gauge powder painted formed steel channel frame.

Floor Supports — Adjustable 31½" to 45½" from floor to top of rollers. One support at ends of 190LSC (Curve), 190LSCS (Curve Spur) and 190LSS (Straight Spur). Single leg supplied for center of outside rail on 90° 190LSC only.

Slave Driven — Curves or spurs are slave driven from drive shaft of Model 190LS conveyor. Shafts are coupled by chain coupling at bed joints.

Drive Shaft — 1" diameter steel shaft extends full length of con- veyor, coupled with universal joints (“U” joints) at necessary inter- vals.

Drive Spools — 2" diameter Delrin spool held in place on drive shaft with “snap-on” lock collars.

Drive Guard — Underside of drive shaft with spools and drive belts guarded full length of conveyor.

Drive Belts — 3⁄16" diameter urethane belt from drive spool to tread roller.

Bearings — Tread rollers, pre-lubricated ball bearings. Sealed, pre- lubricated, self-aligning ball bearings on drive shaft.

Butt Couplings — Standard for connecting to 190LS.

Capacity — See Load Capacity Chart. MODEL “190LSC” - CURVE Between Overall Total Rail Frame “R” Number of Rollers Width Width 90° 60° 45° 30° 15" 18" 321/2" 20T 20T* 10T 10T* 21" 24" 321/2" 20T 20T* 10T 10T* 27" 30" 321/2" 20T 20T* 10T 10T* 33" 36" 48" 30T 20T 15T 10T

Conveying Speed — Other constant and variable speeds from 30 to 120 FPM.

Guard Rails — Adjustable channel, continuous channel, steel guard rails available.

Floor Supports — Lower or higher supports available. Minimum el- evation with standard drive mounting is 18" to top of rollers.

Ceiling Hangers — ½" diameter x 8'0" long threaded rods with locking nuts and mounting hardware. Load Capacity Chart 190LSC 190LSCS 190LSS Between Capacity Capacity Capacity Rail Per Curve Per Spur Per Straight Width (lbs.) (lbs.) Spur (lbs.) 45° 30° 45° 30° 15" 240 300 285 21"-27" 300 405 435 375 480 33"-39" 450 540 720 Weight (lbs.) 90° 60° 45° 30° 208 189 170 140 244 221 198 162 283 245 227 187 430 370 309 246 I US
