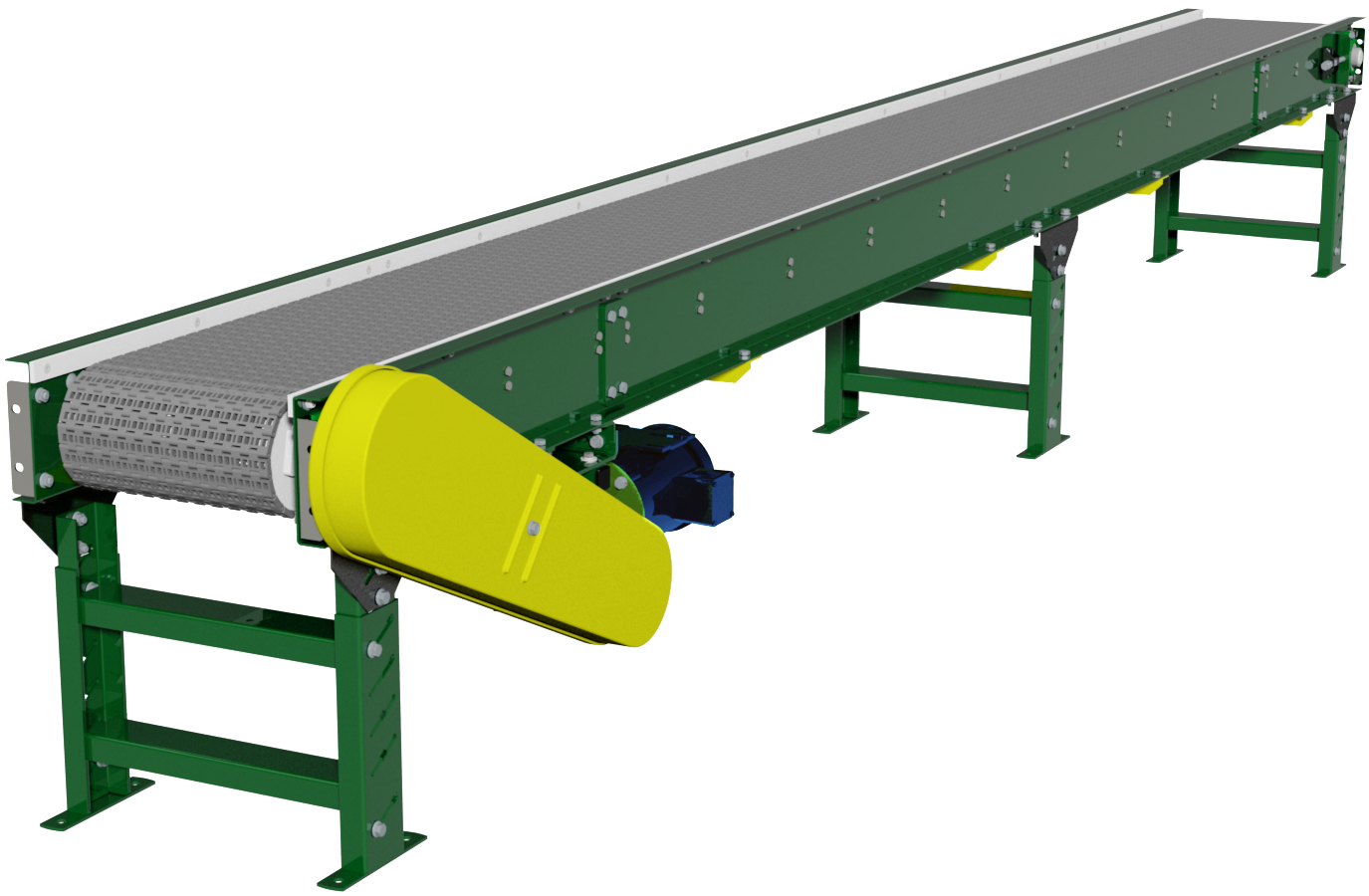

Model "MPB" Medium Duty Modular Plastic Slider Bed Conveyor

Belt Width — 12″, 18″, 24″, 30″, and 48″ wide, 1″ grey polypropylene thermoplastic modular belt.

Bed — 7″ deep x 12 gauge powder painted formed steel channel frames set low with guard. Bolt-in formed steel pan with UHMW carrying surface.

End Drive — End drive standard.

X-Bracing — Frame squaring device supplied on conveyors 40 feet and longer for every other bed section. X-bracing ensures good product and belt tracking.

Sprockets — 5.8″ pitch diameter x 1.5″ square bore, molded polyamide thermoplastic.

Return Idlers — UHMW rollers located along overall length for proper belt tension.

Take-Up — Belt take-up is done with belt (catenary) sagging.

Bearings — Sealed and prelubricated with cast iron housings.

Floor Supports — Adjustable 30-3/4″ to 44-3/4″ from floor to top of belt. One support supplied at each end of conveyor and at each bed joint.

Speed Reducer — C-Face mounted heavy duty worm gear reducer.

Motor — 3/4 HP 230/460-3-60 TE motor.

Belt Speed — 60 FPM constant.

Capacity — 200 pounds per foot maximum. Not to exceed Load Capacity Chart.

Belt — Various styles (colors and materials) available. Contact factory.

Sprockets — Other pitch diameters available.

Guard Rails — Adjustable channel, continuous channel, or solid steel guard rails available.

Floor Supports — Lower or higher than standard. Castered supports with 4″ diameter or 6″ diameter rigid or swivel casters.

Ceiling Hangers — 1/2″ diameter threaded rods 8 feet long with locking nuts and mounting hardware. Other lengths are available.

Side Mounted Drive — End drive mounted to side of conveyor section. Specify side. Minimum elevation 10″.

Motor — Single phase, energy efficient, explosion proof, etc. Other HP available.

Belt Speed — Constant and variable belt speeds available.

Electrical Controls — Magnetic starters and push button stations; manual motor starters with overload protection, others.
